Barrial® standard

Permanent flat roof guardrail

  • Penetration-free
  • Elliminates thermal bridging
  • No sound transmission
  • Low weight per unit area
  • Rapidly assembled due to off site fabrication
  • Proven lightning current carrying capacity

Description

Barrial® standard

The self-supporting aluminium guardrail system ensures safety during maintenance and care work on flat roofs that are not in public use.

Advantages:

  • Factory pre-assembled handrail brackets and simple plug-in connections between uprights, base sleeves and stabiliser rails guarantee quick and professional installation. Only 1 tool (Allen key) is required for the screw connection.
  • Flat counterweights with 2 practical carrying handles facilitate transport and also fit perfectly into gravel or substrate fills.
  • The railing system has a very delicate appearance and integrates perfectly into the building architecture, especially in the painted version (250 RAL colours to choose from).



Variable support variants
The heights of the supports are customised for you!
The inward inclination provides an additional safety distance to the edge of the roof.

Description of the system components

  Counterweights

  • CO2-neutral counterweights made from 100% recycled PVC
  • UV and weather resistant
  • Material compatible with all commercially available sealing membranes
  • Recessed handles for safe transport and high carrying comfort for
    both (12.5 kg and 25 kg) versions
  • Space-saving and stackable
  • Simple fixing of the weight to the base rail by means of a
    self-drilling screw

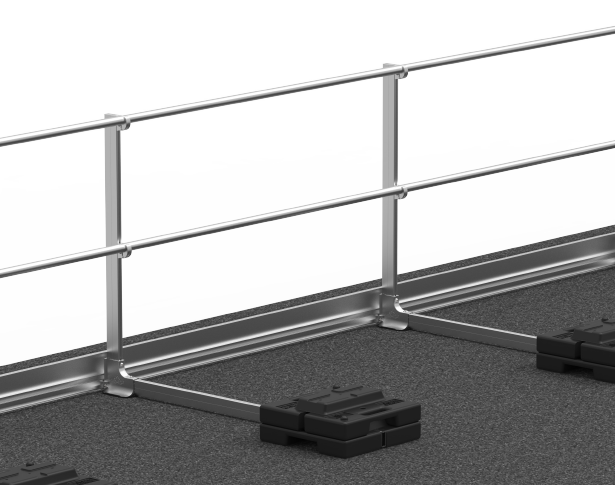

  Practical combi shoe (2.0)

  • Conection of stanchion and base rail by simply push-fitting
  • Particularly space-saving in transport
  • Non-slip protective cap on the underside
  • Up to 30 mm post height adjustment
  • Mounting rib for simple installation of the foot rail with a quick connector
  Practical handrail clamps

  • Rapid installation by means of a factory mounted handrail clamp
  • No scratching of the profiles during assembly
  • Easy alignment without disassembly
  • Single allen key installation and adjustement
Practical accessories

  • Connecting components such as handrail connectors, angle connectors and
    brackets with expansion mechanism
  • Rapid installation without drilling or riveting
