EAE SAFEX MULTI KT

Kategorien Fall protection systems, Single anchorage points, Metal

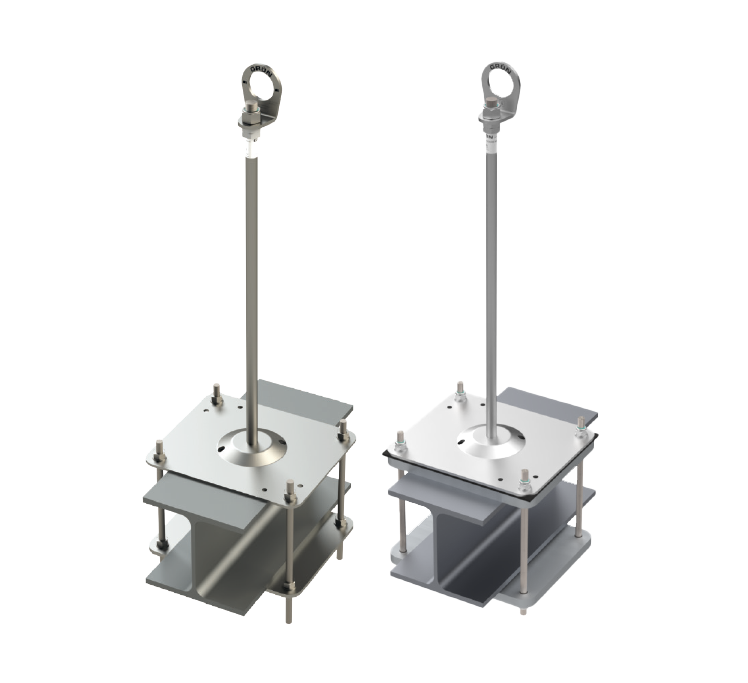

Single stainless steel anchor device for PPE with rotating swivel eye.

EAE SAFEX MULTI KT

Description

Mounting substrate:

stainless steel/wood (min. 60 mm wide)

Fixing:

stainless steel counter set (included in delivery)

Dimension:

Ø 16 mm x height, max. overhang roof structure: 300 mm

Approval:

general building authority approval according to DIBt

Certificate:

according to EN 795:2012 Type A, CEN/TS 16415:2017

Installation:

according to enclosed installation instructions

Variants

EN 795

Article number	Designation	Height
60303000KT	GRÜN EAE SAFEX MULTI KT (EX) 300	300 mm
60304000KT	GRÜN EAE SAFEX MULTI KT (EX) 400	400 mm
60305000KT	GRÜN EAE SAFEX MULTI KT (EX) 500	500 mm
60306000KT	GRÜN EAE SAFEX MULTI KT (EX) 600	600 mm

Customised support heights up to max. 1000 mm available.

DIBt

Article number	Designation	Height
60303020KT	GRÜN EAE SAFEX MULTI KT (D) 300	300 mm
60304020KT	GRÜN EAE SAFEX MULTI KT (D) 400	400 mm
60305020KT	GRÜN EAE SAFEX MULTI KT (D) 500	500 mm
60306020KT	GRÜN EAE SAFEX MULTI KT (D) 600	600 mm

Customised support heights up to max. 1000 mm available.
