Gussasphalt-Transportkocher 5.000 l bis 7.500 l

Description

Boiler capacity from 5.000 to 7.500 l
Boiler shell, frant walls and agitating arms are made of wear-resistant and heat-resistant steel
Direct hydraulic agitator drive with variable volume pump adjustable stepless from 0-7 rpm and electrically operated valves
Hatz diesel engine in sound absorbing design
All-round boiler insulation with 60 mm rock wool. Insulated covering made of highly polished stainless steel

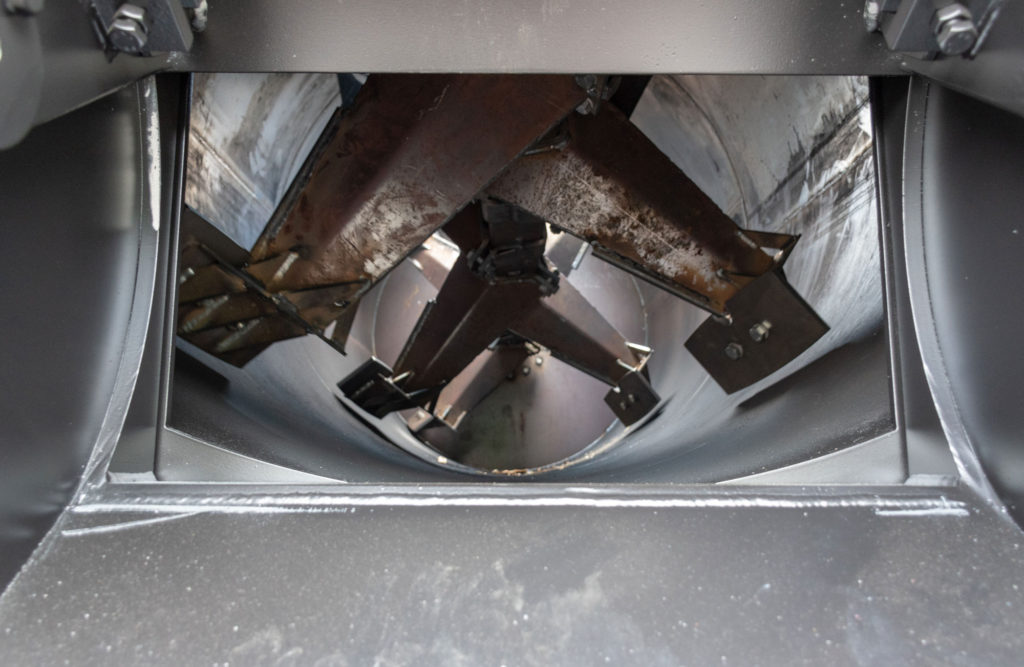

Agitating hands are made of durable cast iron or Hardox
Fully automatic oil burner heating the boiler is protected by a large flame tube, flue gas distribution box and a temperature limiter.

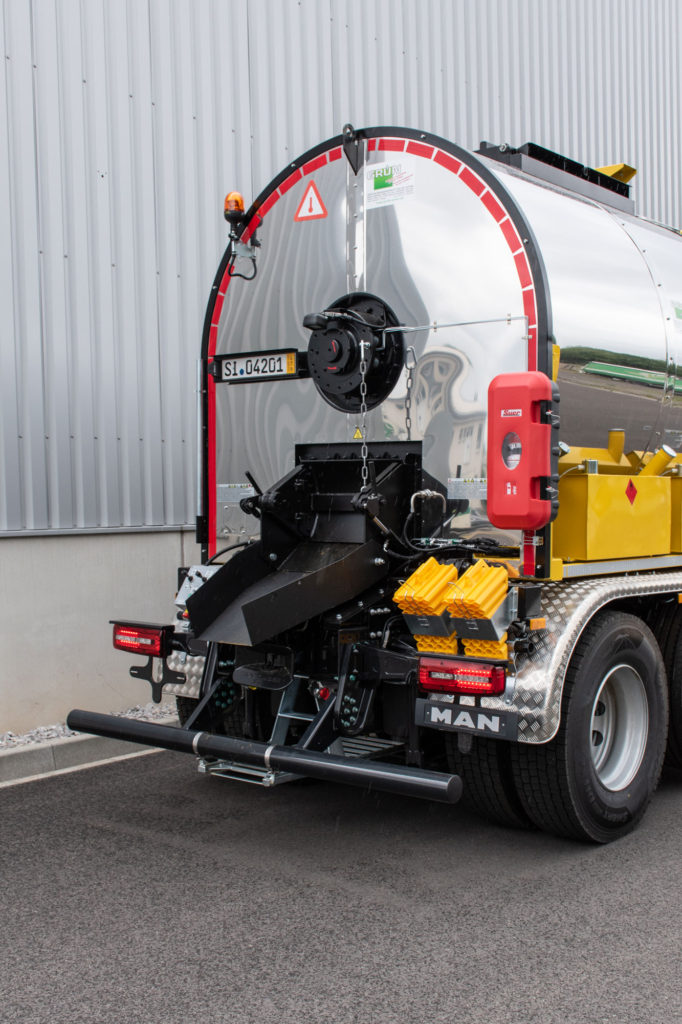

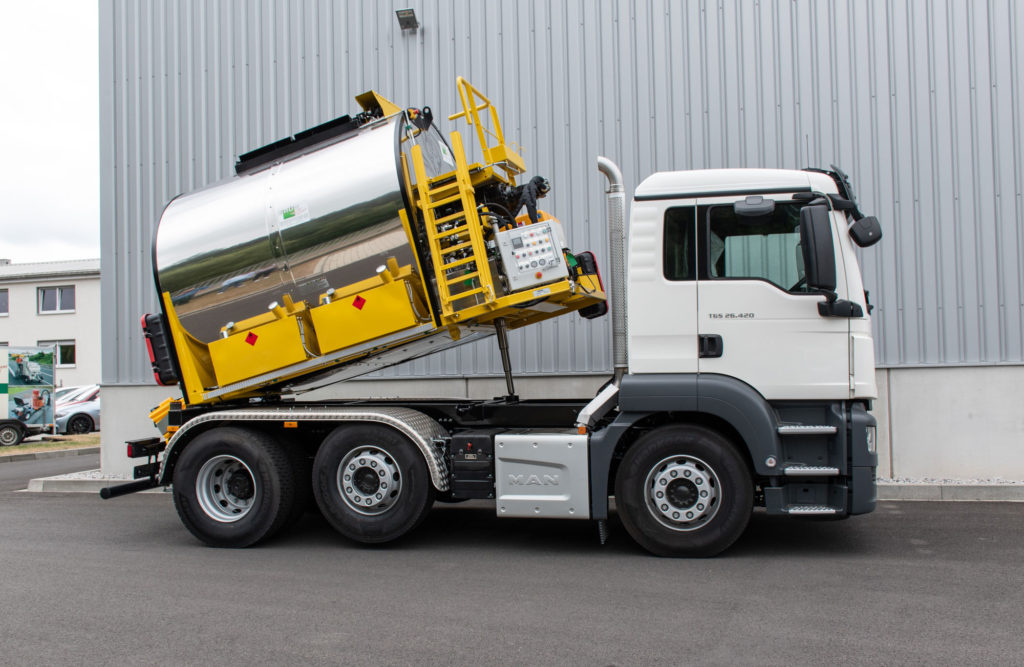

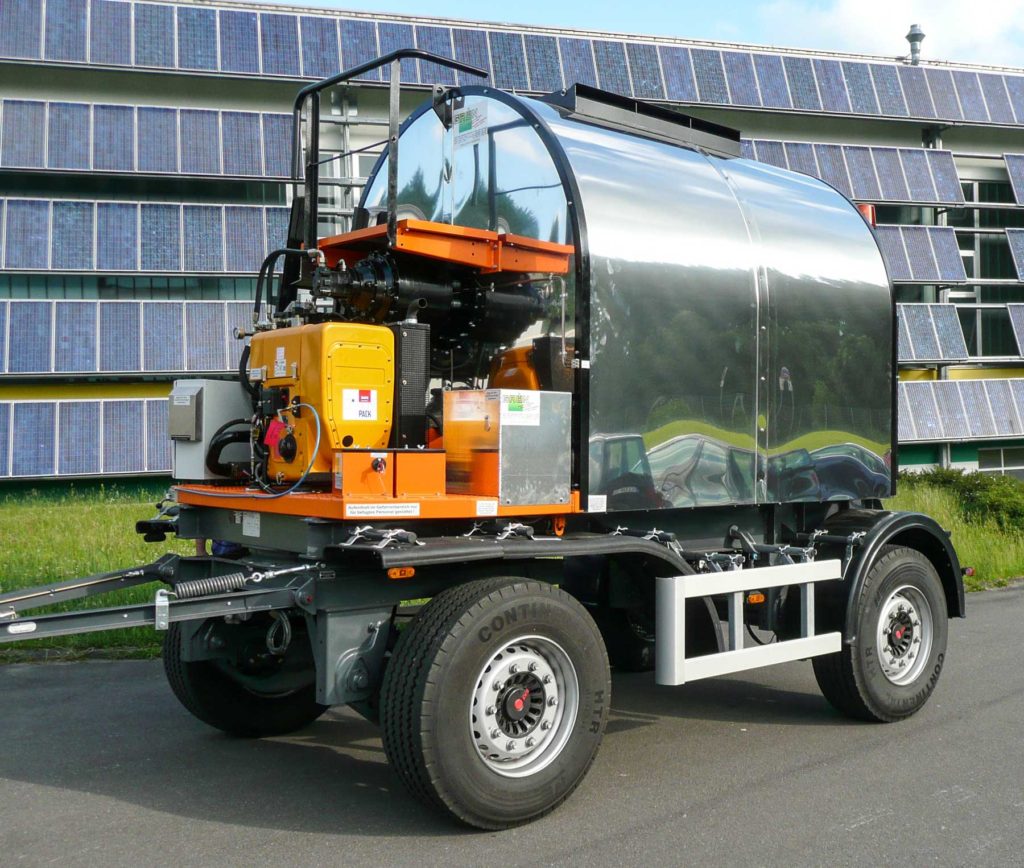

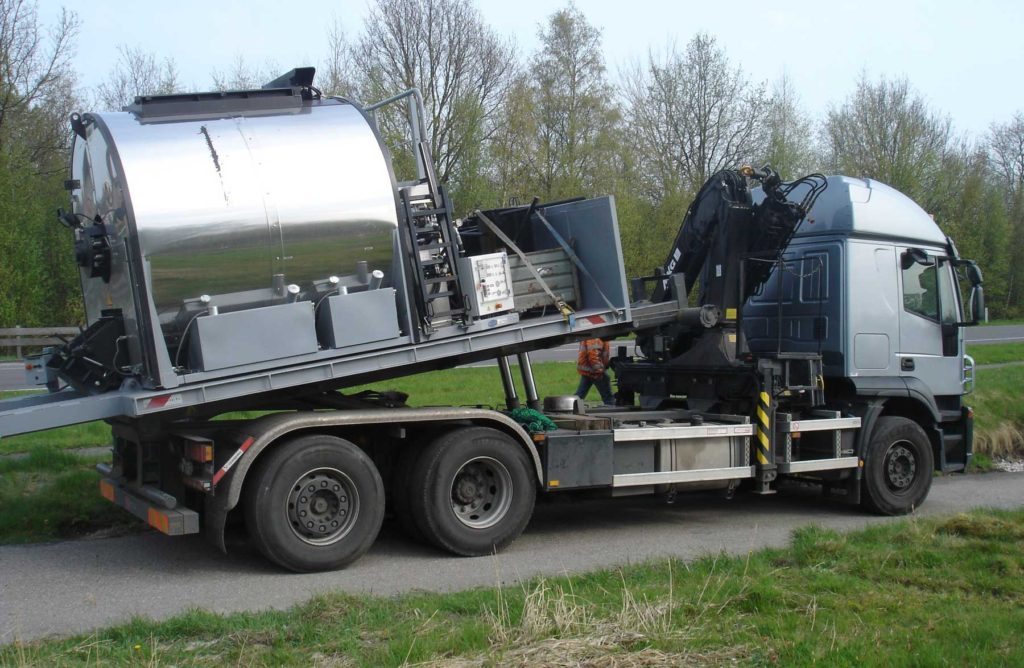

The boilers can be mounted on trucks, trailers and semi-trailer chassis having sufficient loading capacity.
This series is characterized by its low deadweight, large boiler diameter with low total height, short design, powerful agitator drive and large drain cock.

Designation	RGTK 5000	RGTK 6000	RGTK 7500
Part no.	82050 0000	82060 0000	82075 0000
Boiler capacity	5,0 m³	6,0 m³	7,5 m³
Approx. bearing length	3.390 mm	3.790 mm	5.270 mm
Width approx.	2.200 mm	2.200 mm	1.900 mm
Height approx.	2.200 mm	2.200 mm	2.200 mm

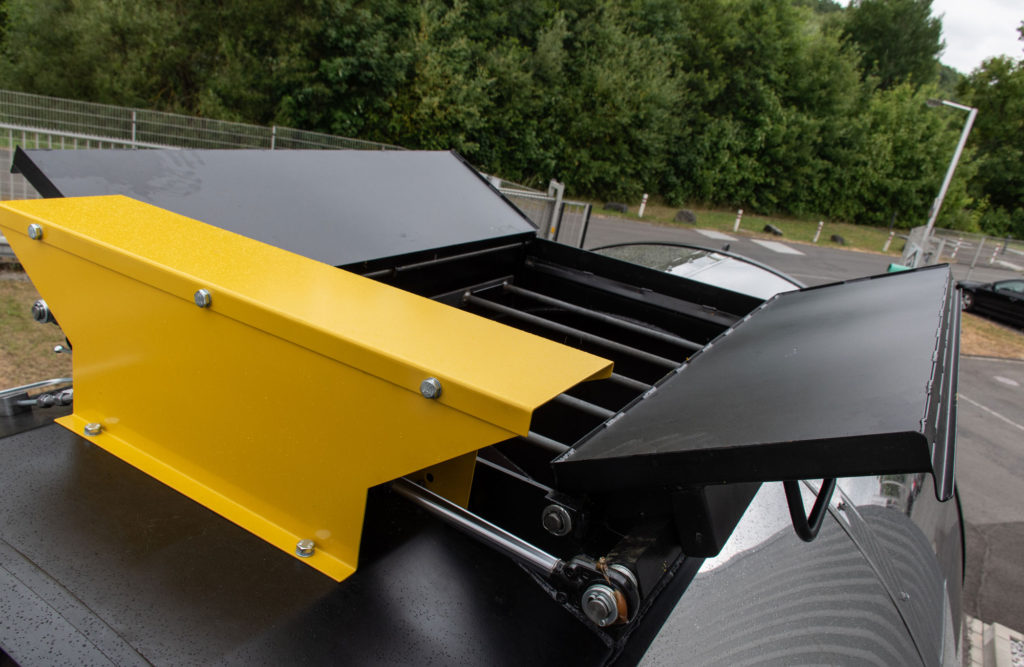

Filling lid	1.300 x 800 mm	1.300 x 800 mm	1.300 x 800 mm
Drain cock	600 x 360 mm	600 x 360 mm	600 x 360 mm
Dead weight approx.	4.100 kg	4.400 kg	5.500 kg
Diesel engine power	18,9 kW	18,9 kW	24,4 kW
Max. Torque (agitator)	40.000 Nm	40.000 Nm	40.000 Nm

Subject to technical changes.
