Mastic asphalt recycling boiler 250 l to 800 l

Kategorien Mastic asphalt technology, Road construction machinery

Special equipment for melting and transporting mastic asphalt.

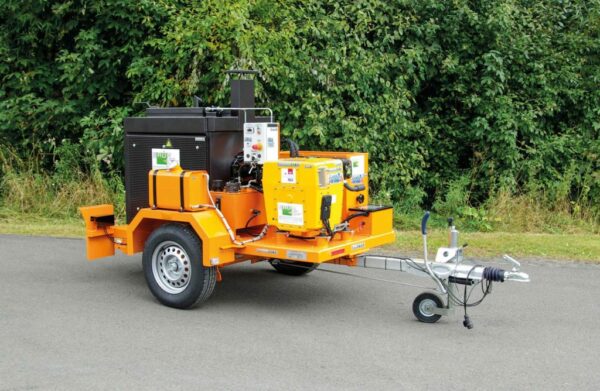

Gussasphaltrecyclingkocher 250 l bis 800 l

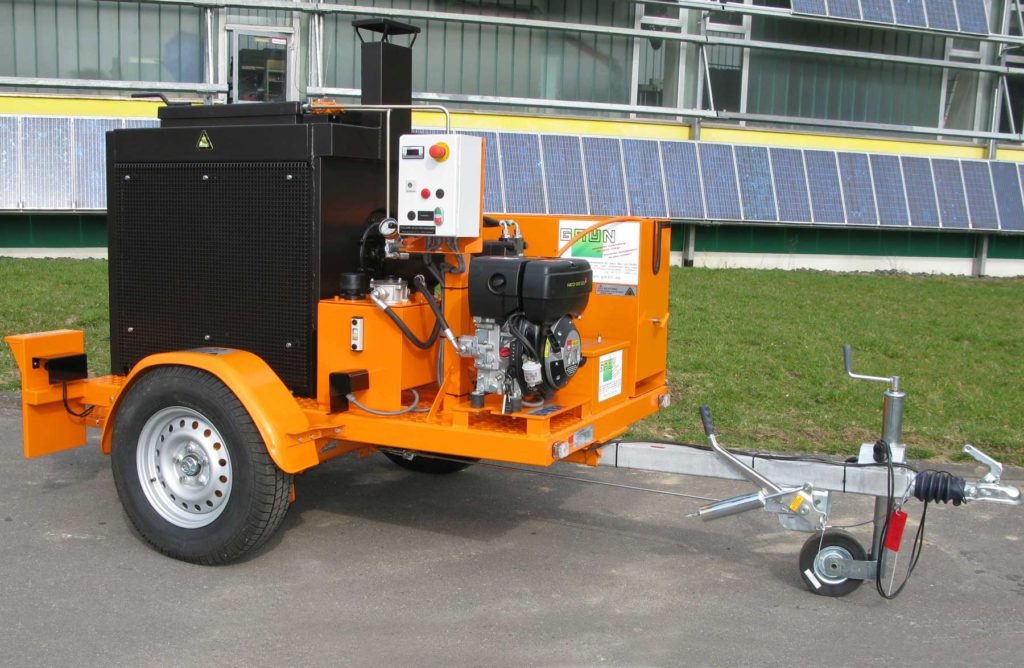

Gussasphaltrecyclingkocher 250 l bis 800 l - Image 2

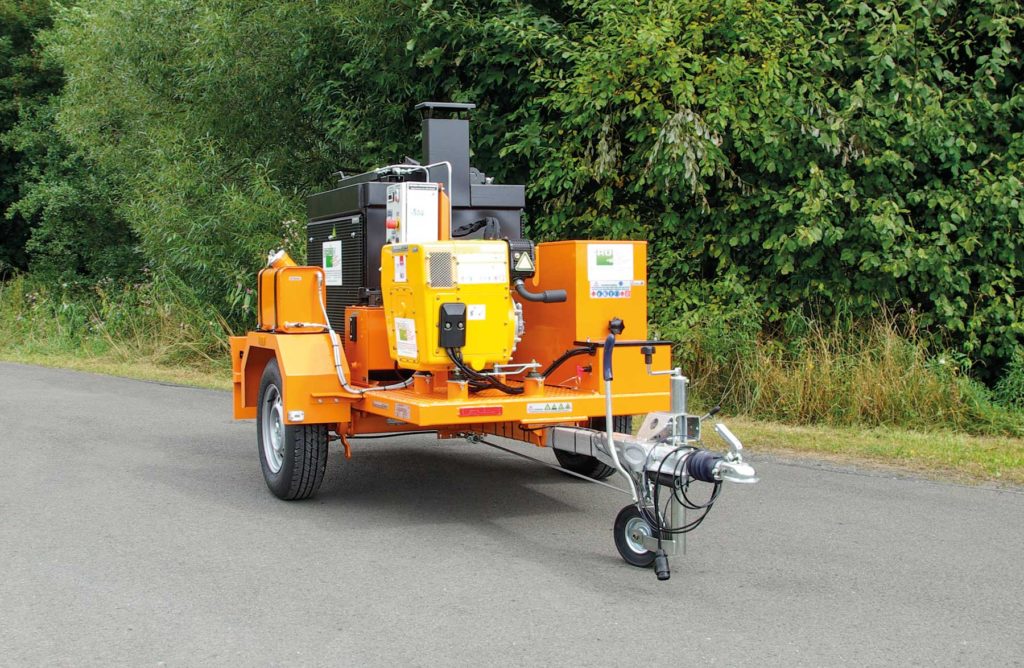

Gussasphaltrecyclingkocher 250 l bis 800 l - Image 3

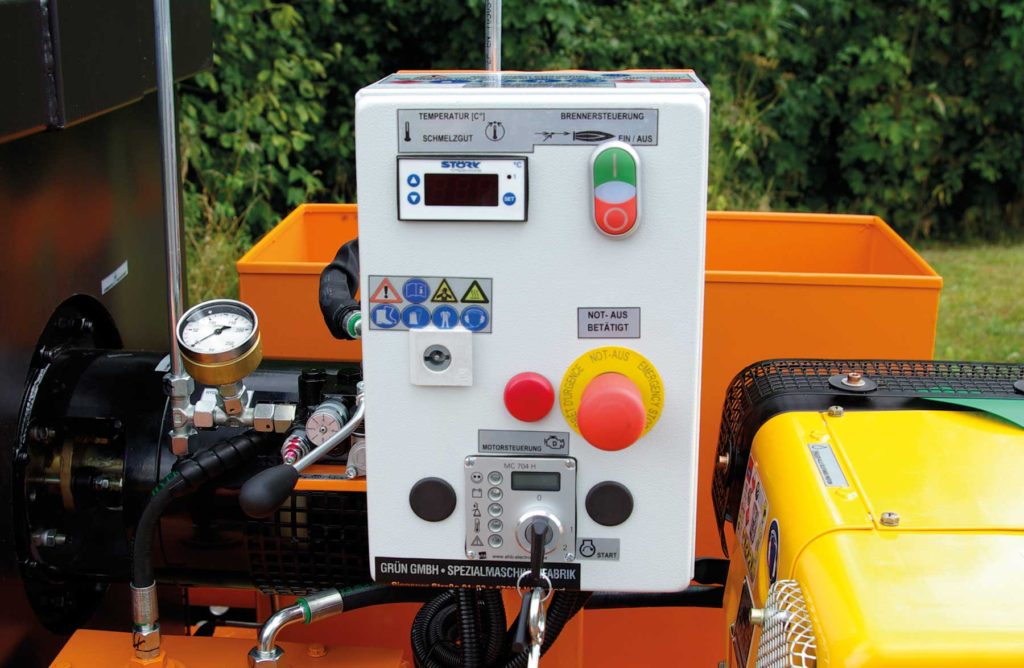

Gussasphaltrecyclingkocher 250 l bis 800 l - Image 4

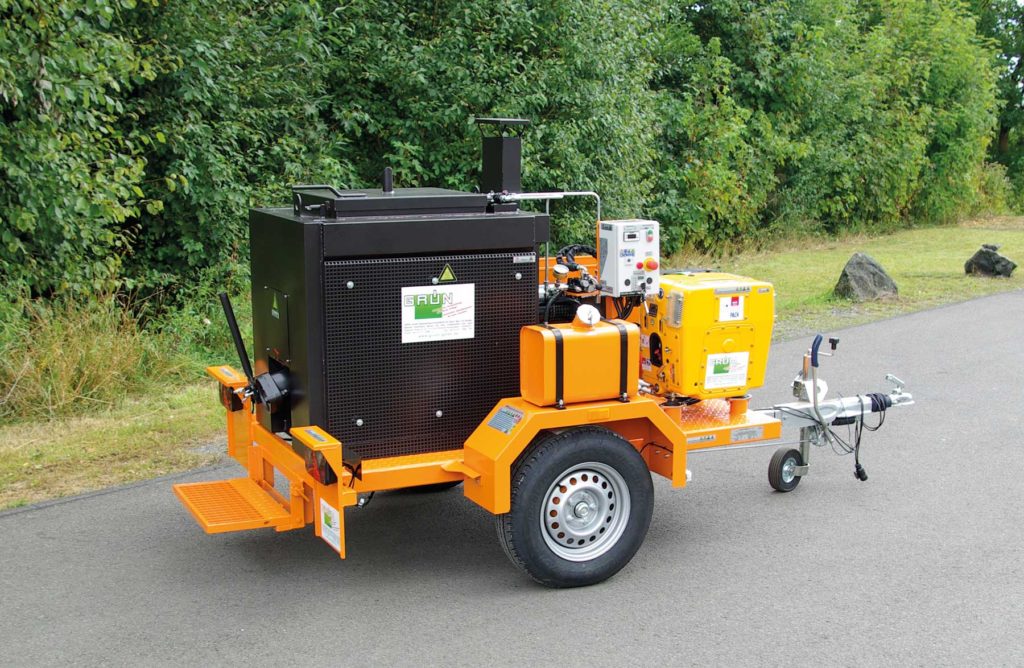

Gussasphaltrecyclingkocher 250 l bis 800 l - Image 5

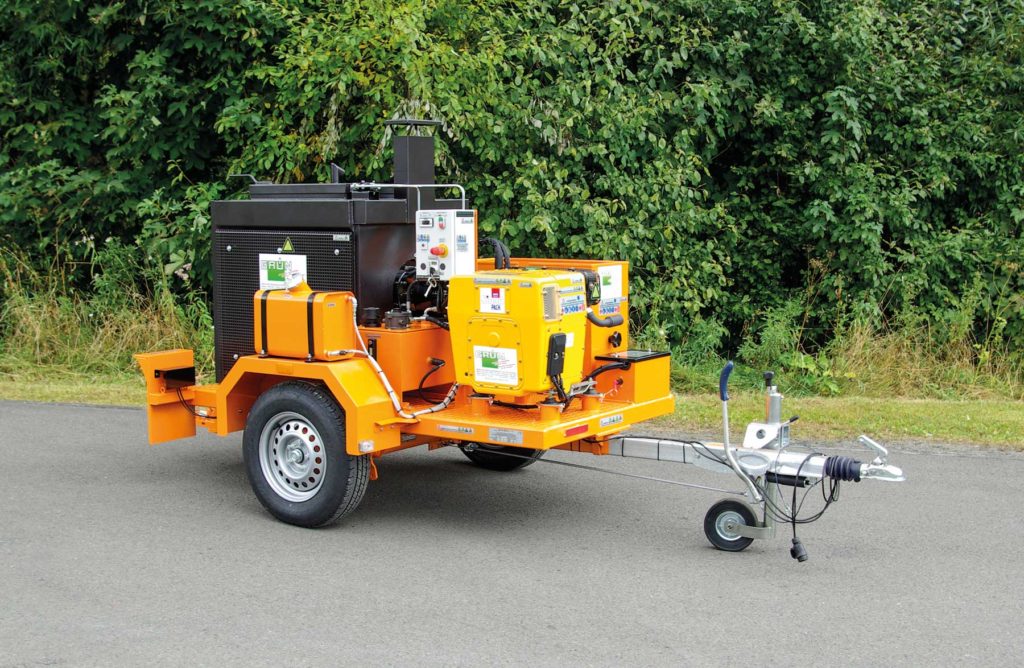

Gussasphaltrecyclingkocher 250 l bis 800 l - Image 6

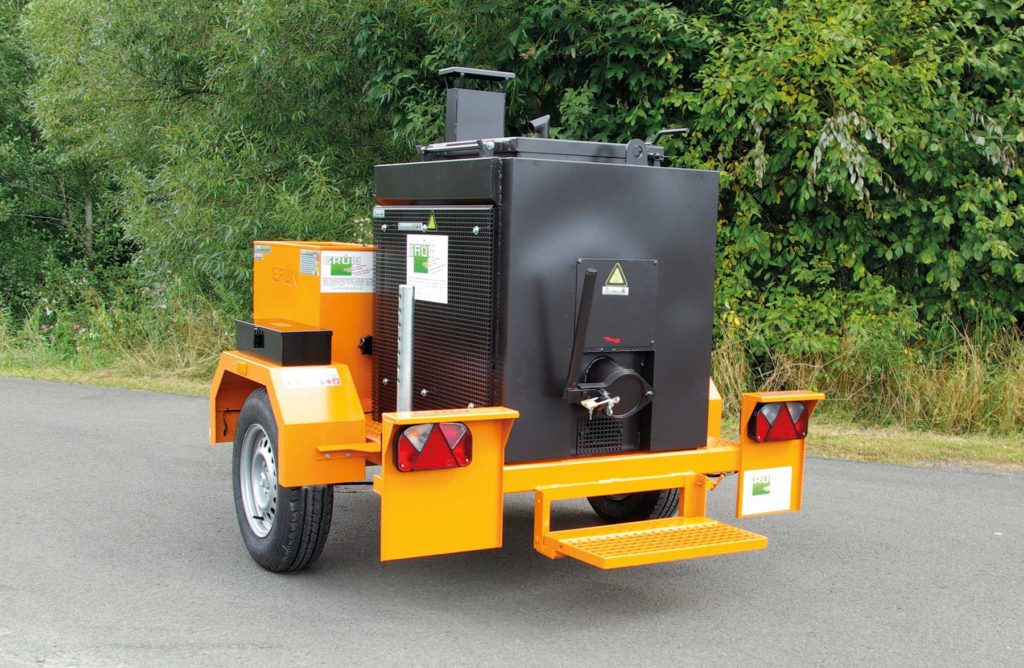

Gussasphaltrecyclingkocher 250 l bis 800 l - Image 7

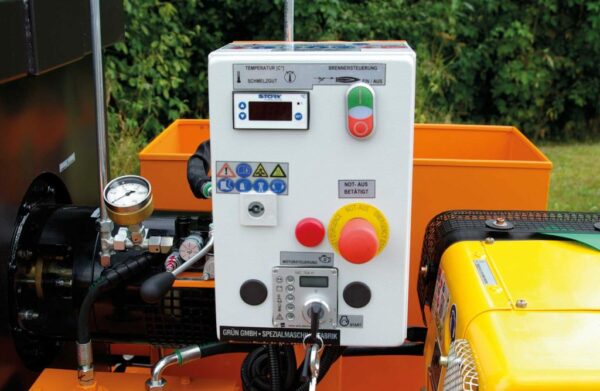

Gussasphaltrecyclingkocher 250 l bis 800 l - Image 8

Description

Boiler capacities 250 to 800 l
Low deadweight, powerful direct horizontal agitator drive, short melting times and durable inner pan
Propane gas or fully automatic oil burner heating (Flame-shield prevents direct flame on the boiler shell by propane gas firing or combustion chamber used for oil firing).
Device set up on truck or trailer chassis having adequate bearing capacity
Available in stationary or mobile model

Technical details stationary model

Designation	RGTK 250	RGTK 500	RGTK 800
Item no. RGTK oil	—–	82005 0000	82008 0000
Item no. RGTK oil	82003 0100	82005 0100	82008 0100
Boiler capacity	0,25 m³	0,5 m³	0,8 m³
Length approx.	1.860 mm	2.350 mm	2.600 mm
Width approx.	1.200 mm	1.200 mm	1.200 mm
Height approx.	1.530 mm	1.480 mm	1.480 mm
Filling lid	500 x 600 mm	500 x 1.000 mm	500 x 1.000 mm
Drain cock	120 mm round	120 mm round	120 mm round
Dead weight approx.	810 kg	1.300 kg	1.420 kg

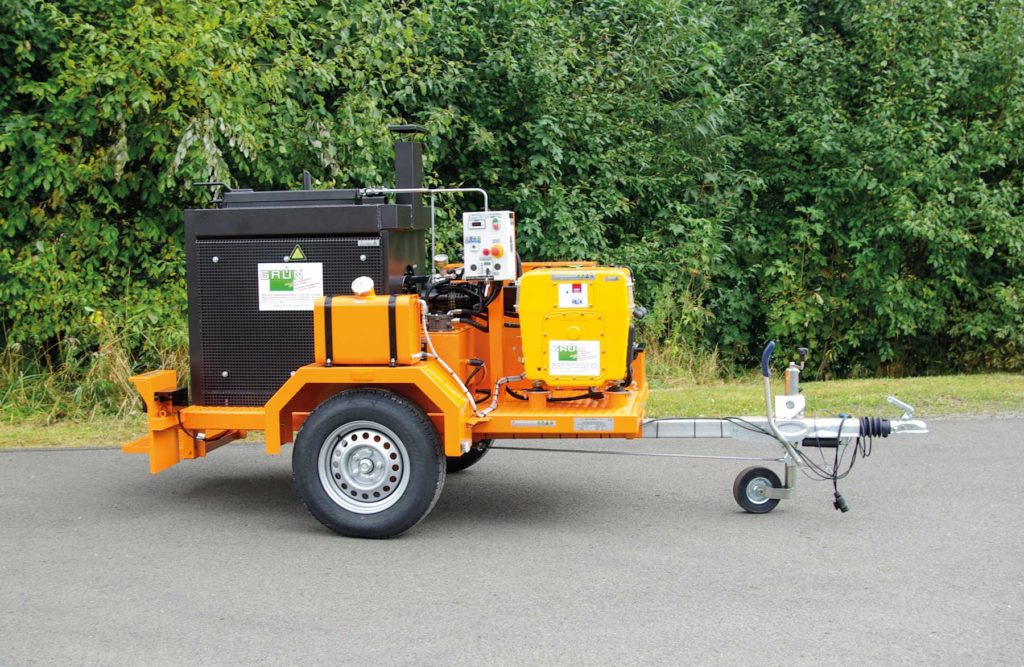

Technical details mobile design

Designation	RGTK 250	RGTK 500	RGTK 800
Part no.	82003 0000	82005 0500	82008 0500
Trailer chassis	Single axle	Tandem	Tandem
Length approx.	3.100 mm	4.350 mm	4.350 mm
Width approx.	1.650 mm	1.950 mm	1.950 mm
Height approx.	1.780 mm	1.950 mm	2.350 mm
Dead weight approx.	1.070 kg	2.100 kg	2.600 kg
App: Total weight	1.800 kg	3.500 kg	4.500 kg

Other sizes on request.

Subject to technical changes.
