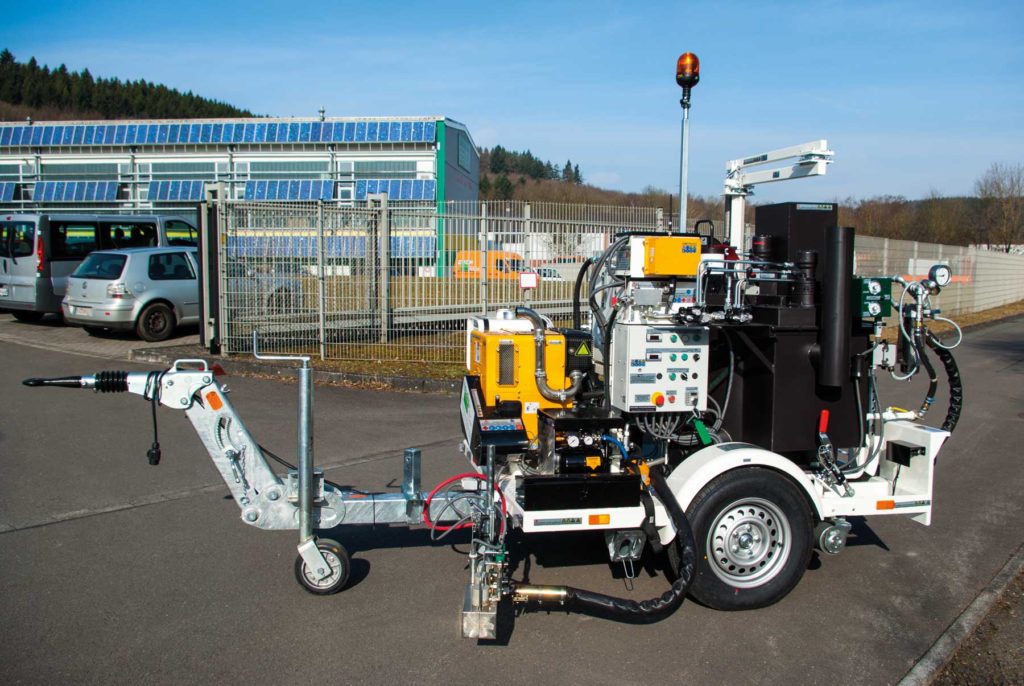

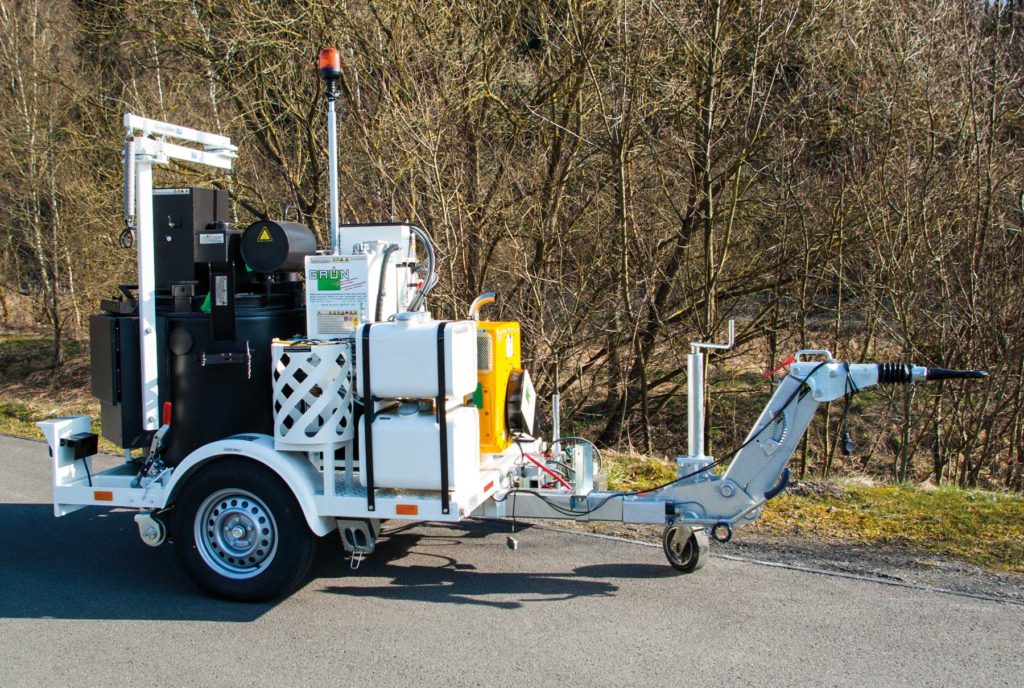

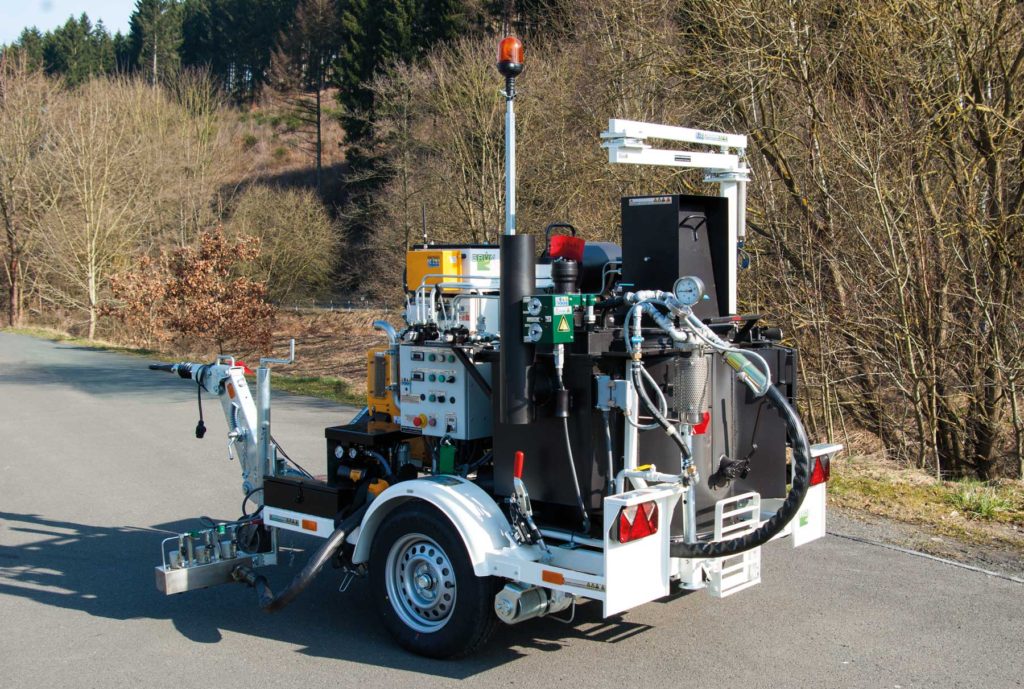

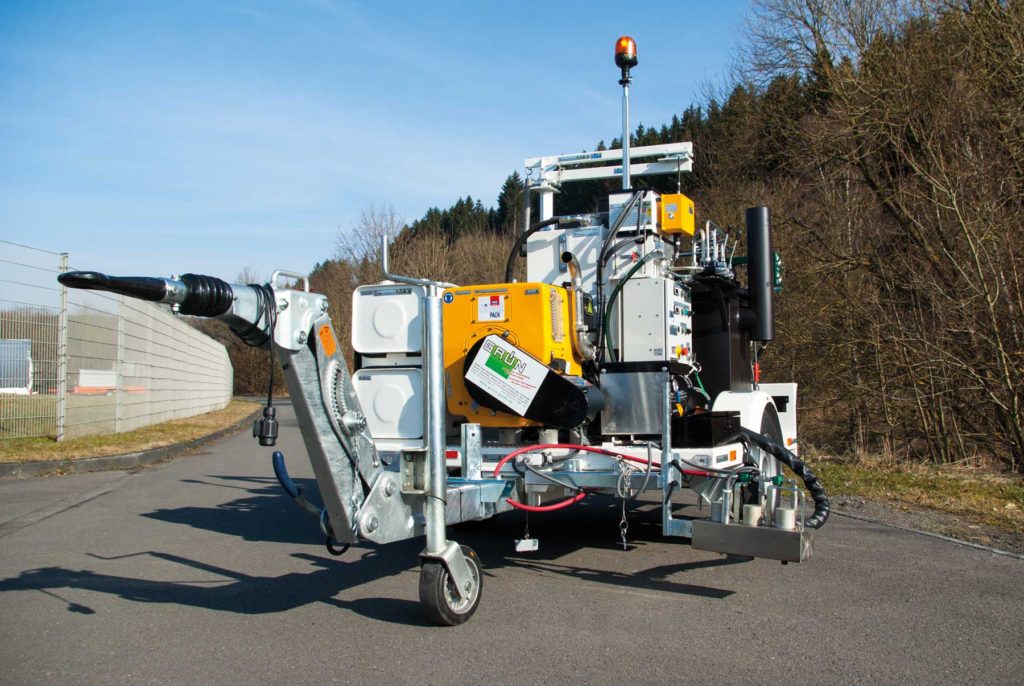

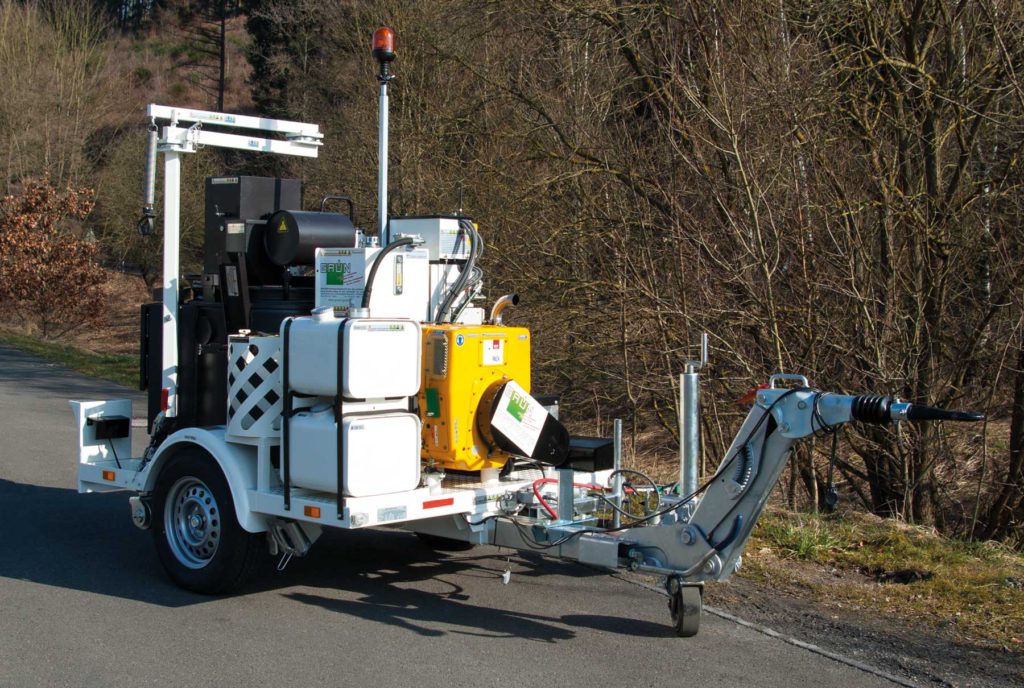

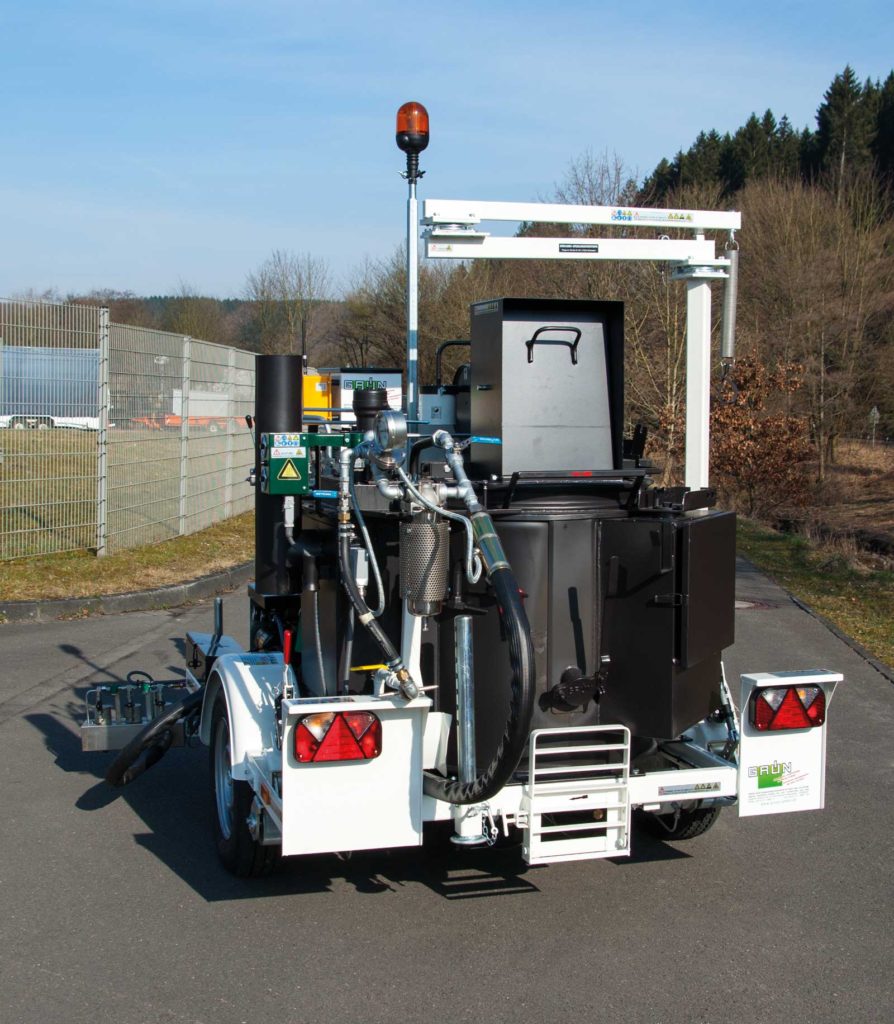

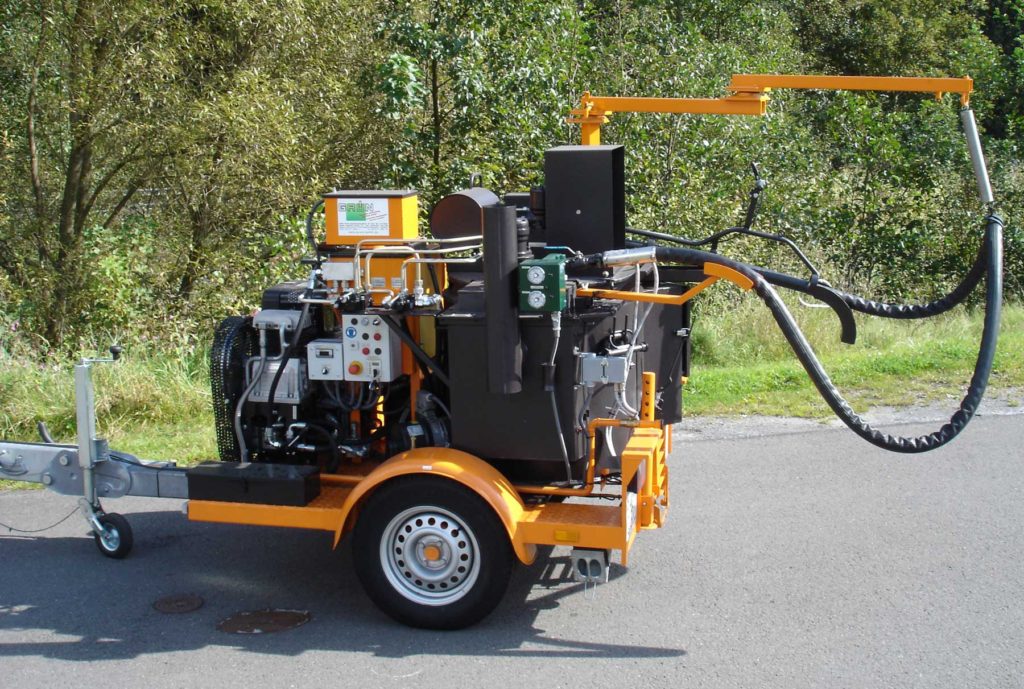

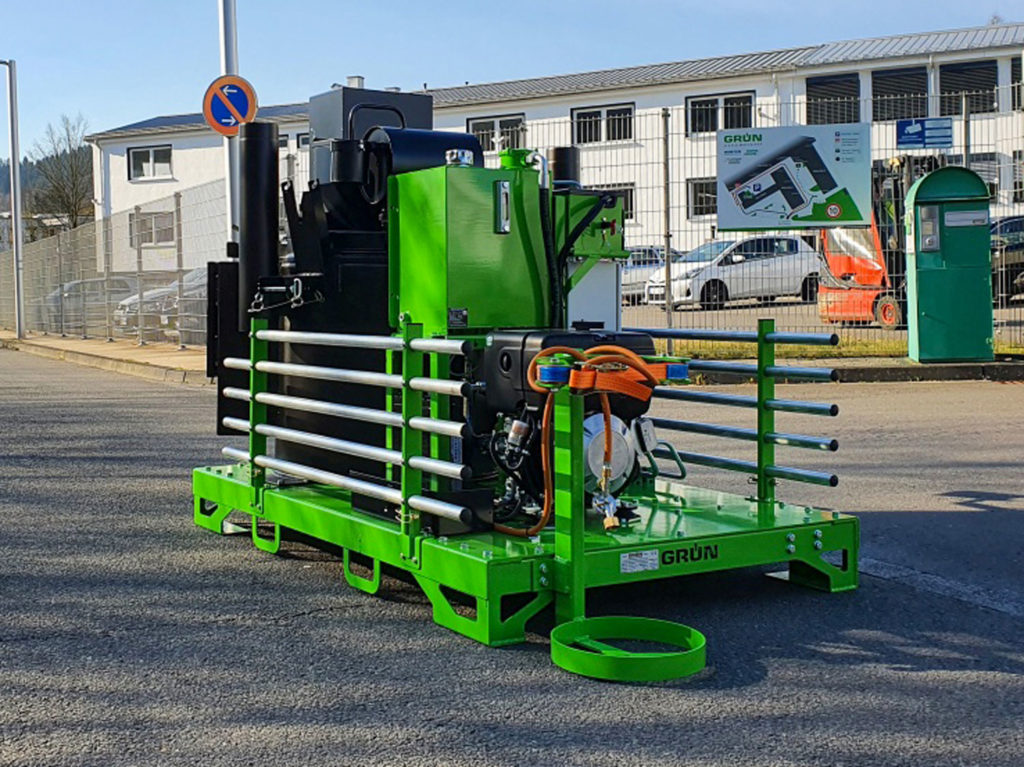

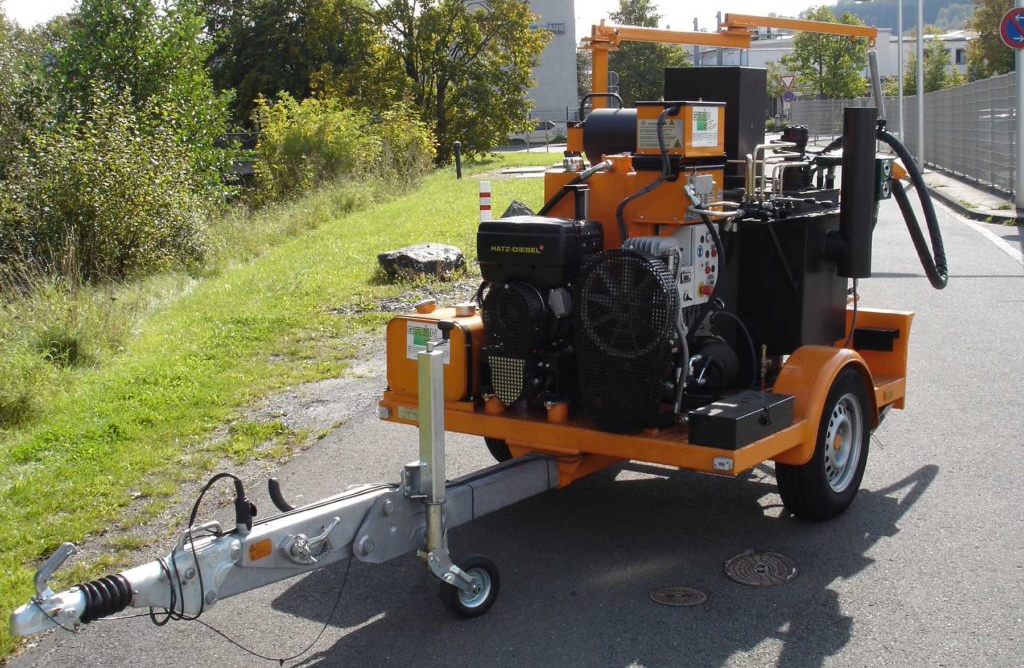

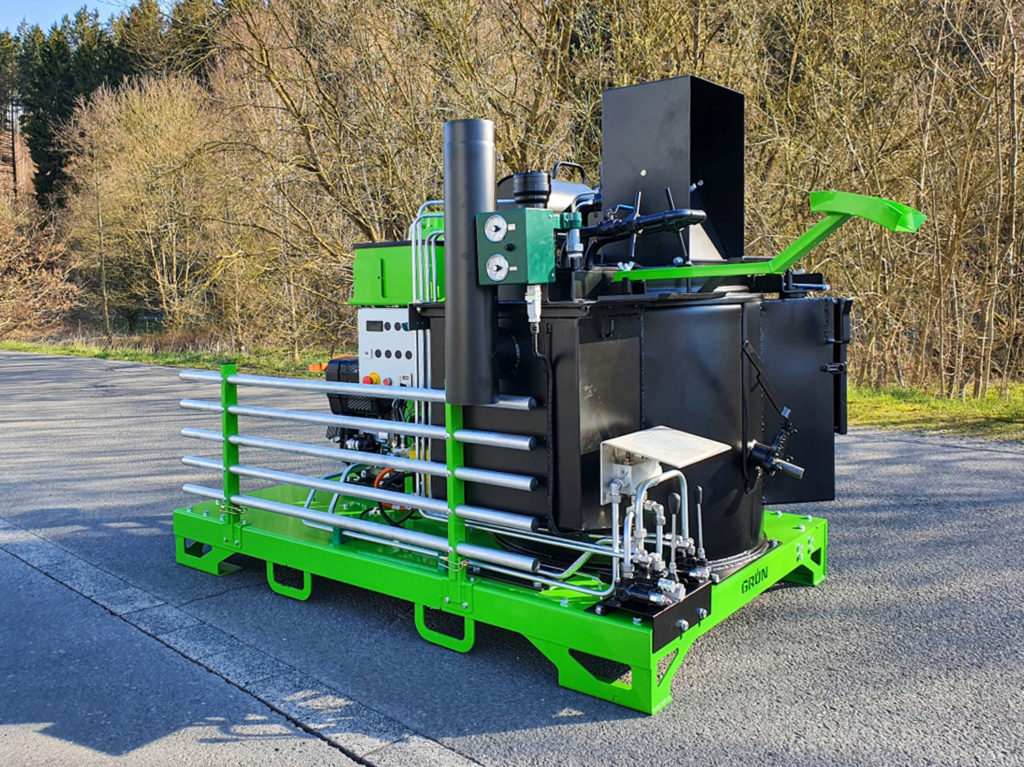

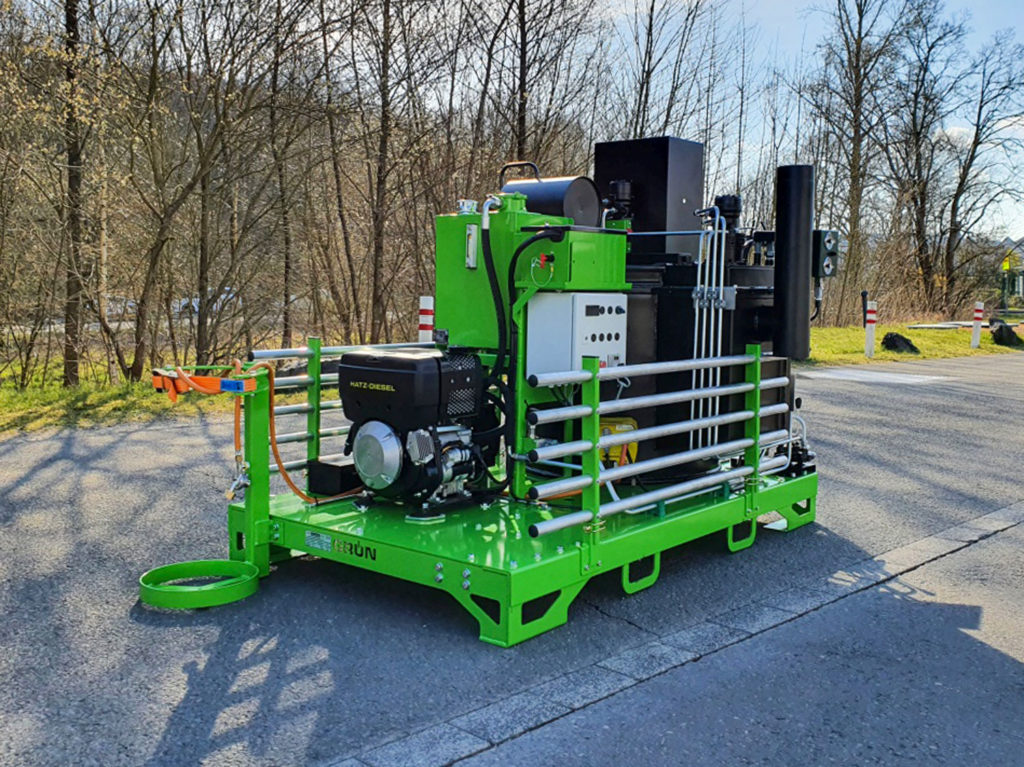

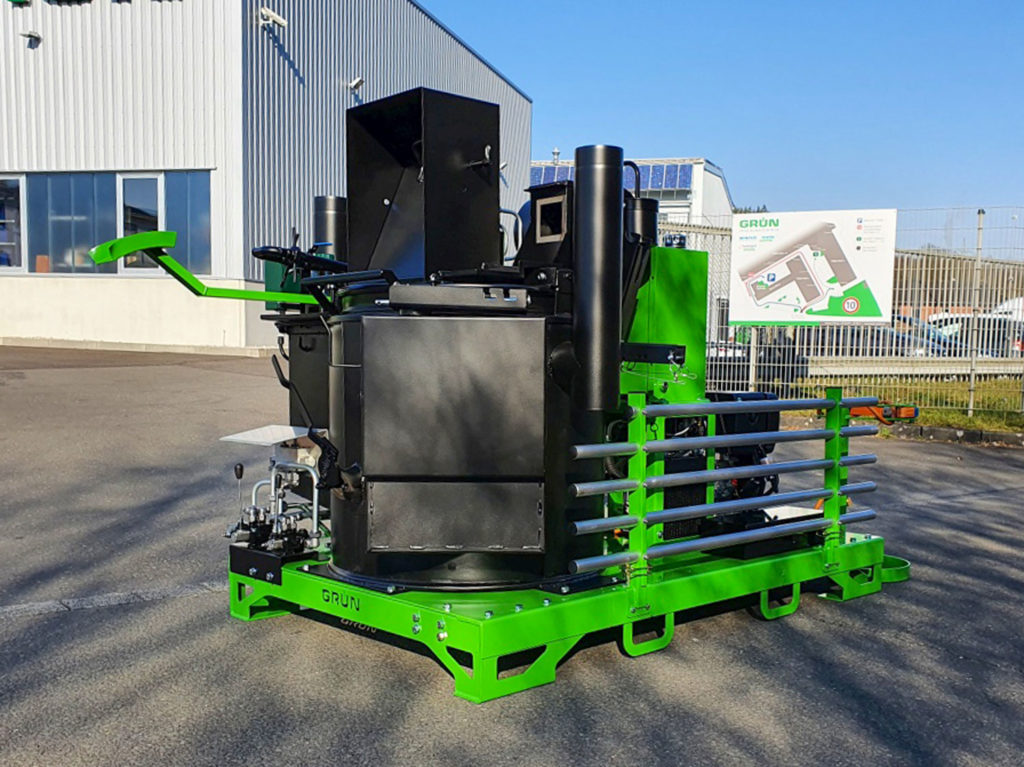

RVK 200i vertikal fahrbar/stationär

Description

Compact design, low weight, quick heat-up time
High melting power via heat transfer oil with low gas or heating oil consumption
Hose pre-heating box and safety filling lid are standard features
Internal sealing unit

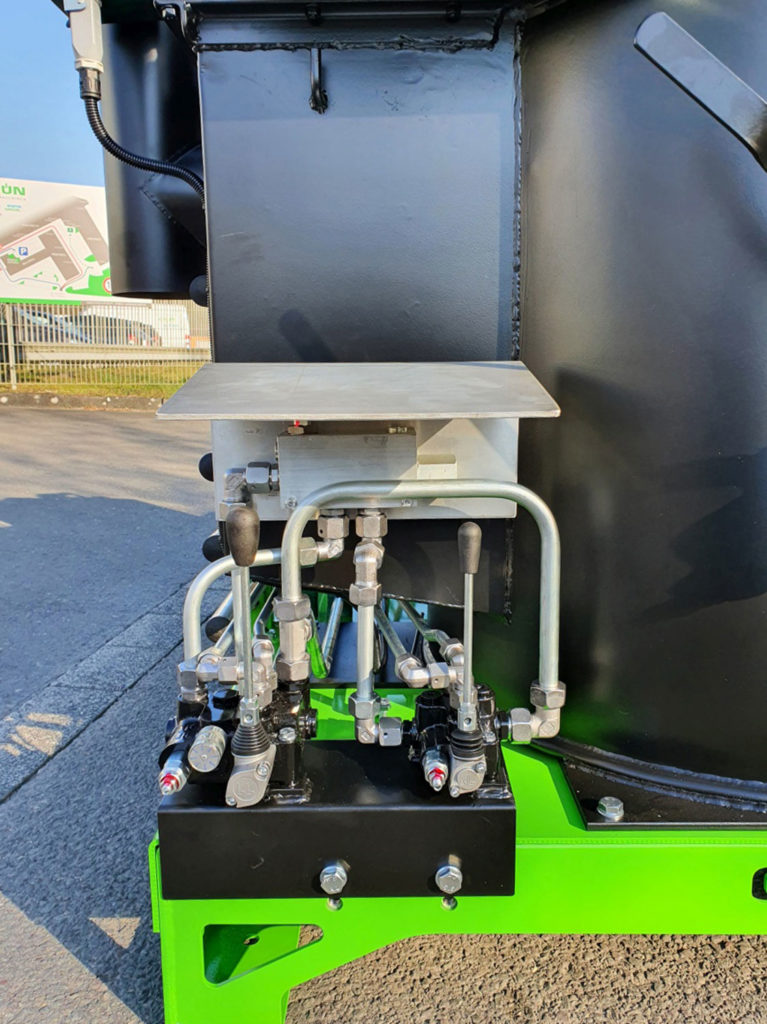

Vertical agitator hydraulically driven

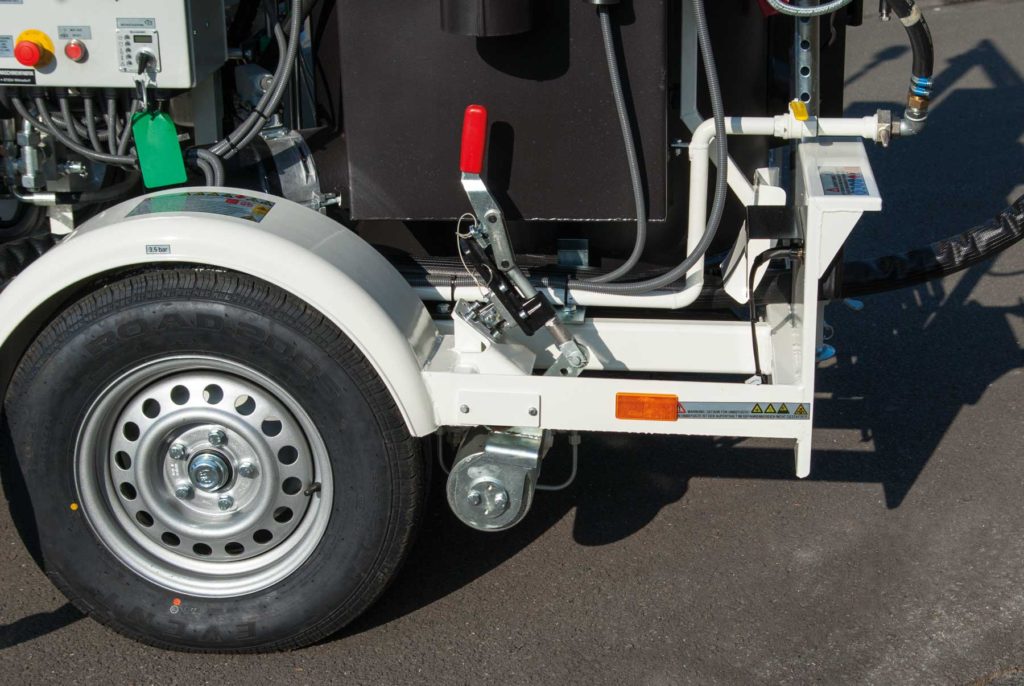

Single-axle chassis with overrunning and hand brakes
Height-adjustable drawbar

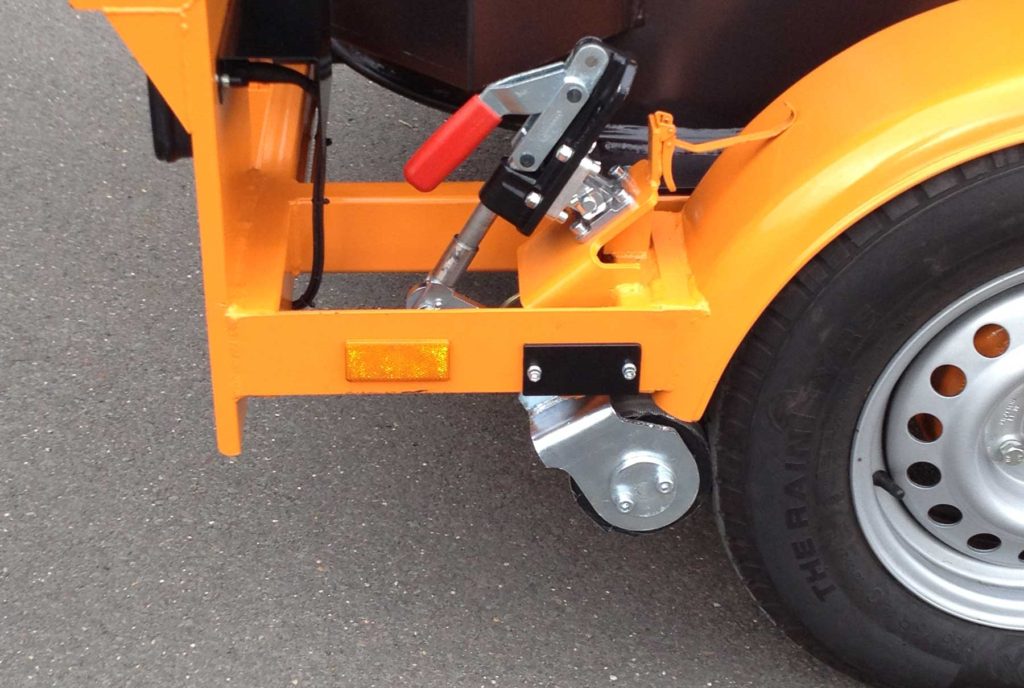

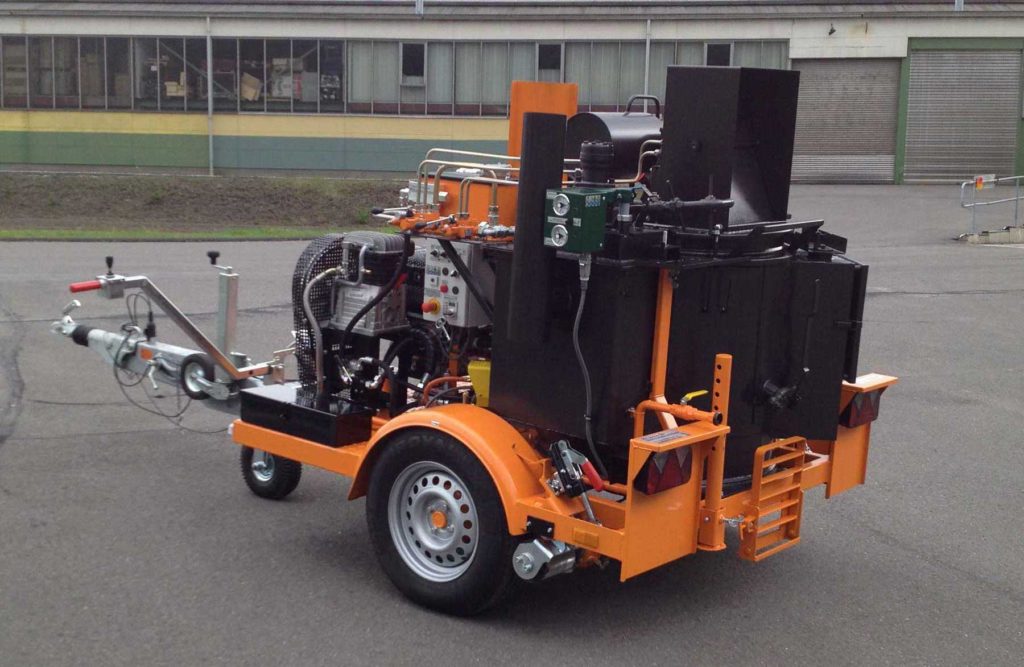

Devices available with axle friction wheel drive with steering rod or radio remote control
Lighting and TÜV acceptance, optional DIN coupling ring or ball hitch for cars

Designation	RVK 200i	RVK 200i	RVK 200iS	RVK 200iS
Part no.	0256 0000	0256 0200	0296 0100	0296 0300
Boiler capacity	200 l	200 l	200 l	200 l
Heat transfer oil*	60 l	60 l	60 l	60 l
Diesel motor power	7.5 kW at 3.000/min	7.5 kW at 3.000/min	9.6 kW at 3.000/min	9.6 kW at 3.000/min
Supra Silent Pack	no	no	yes	yes
Pump capacity approx.	up to 17 l/min	up to 17 l/min	up to 17 l/min	up to 17 l/min
High-speed chassis	Single axle	Single axle	Single axle	Single axle
Friction wheel drive	no	no	yes	yes
Length approx.	3.750 mm to 4.000 mm	3.750 mm to 4.000 mm	3.750 mm to 4.000 mm	3.750 mm to 4.000 mm
Width approx.	1.620 mm	1.620 mm	1.620 mm	1.620 mm
Height approx.	1.750 mm	1.750 mm	1.750 mm	1.750 mm
Unloaded weight approx.:	1.070 kg	1.070 kg	1.430 kg	1.430 kg
Perm. total weight	1.450 kg	1.450 kg	1.800 kg	1.800 kg
Heating	Propane	Heating oil	Propane	Heating oil

Designation	Article number
Board compressor for blowing out sealing hose RVK 200i	0256 5600
Board compressor for blowing out sealing hose RVK 200iS	0296 5600
Bottle holder for 11 kg gas bottle Bottle holder for 11 kg gas bottle (for RVK 200 oil firing)	0248 9500
Heat transfer oil 1 liter (for amount required per unit, see technical specifications) (jeweils benötigte Menge pro Gerät siehe technische Daten)	99989 0401
Hose clamp for sealing hose	83100 8600

Designation	Article number
Electrically heated single-hose system 24 V incl. potting lance (length 5 m)	0256 9801
Unit equipped to support electrically heated Sealing hose RVK 200i	0256 9500
Unit equipped to support electrically heated Sealing hose RVK 200iS	0296 9500
Grouting hose 4 m with spiral	0259 9812
Grouting lance with Bowden cable actuated outlet.	0259 9850
Grounding lance with rotary handle actuation outlet.	0259 9750
