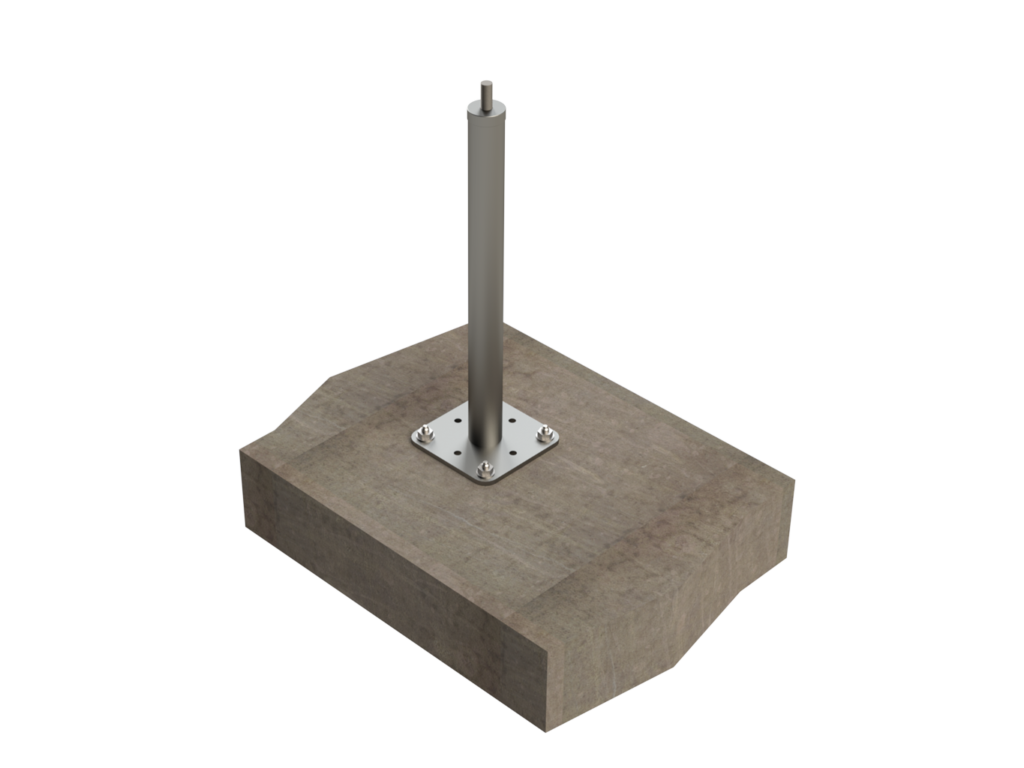

SYS VARIANT BD

Description

Mounting substrate:

• concrete (quality at least C20/25, at least 120 mm thick)

Fixing:

• 4 pieces stainless steel concrete dowels (included in delivery)

Dimension:

• Ø 48 mm x height, max. overhang roof structure: 300 mm

ETA concrete:

• European Technical Assessment ETA-24/0041

Approval:

• General type approval of the DIBt

Certificate:

• according to EN 795:2012 Type A, CEN/TS 16415:2017

Installation:

• according to enclosed installation instructions
