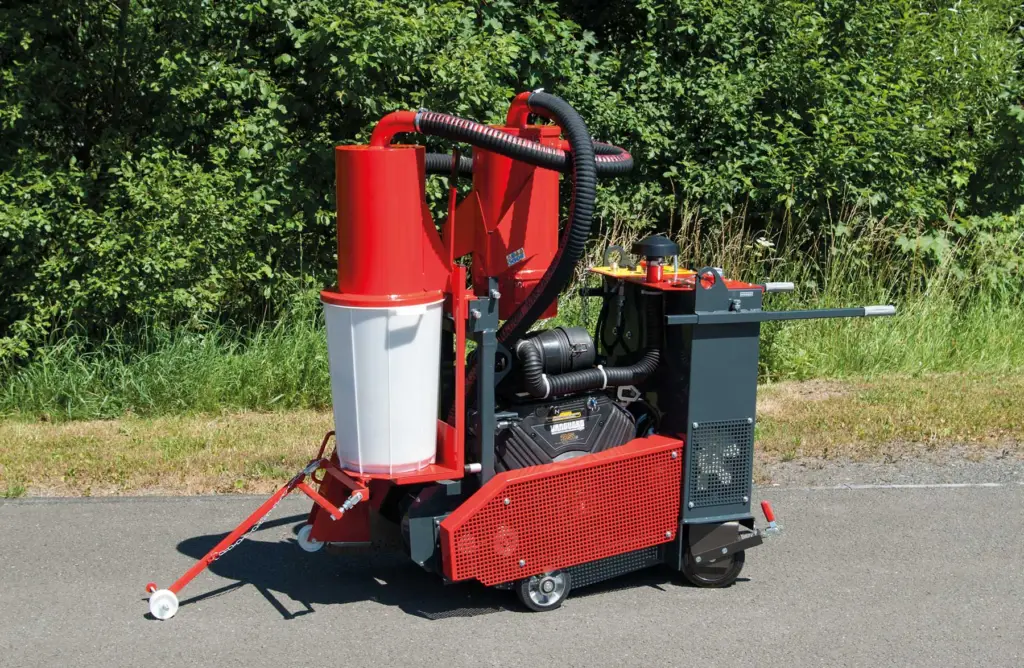

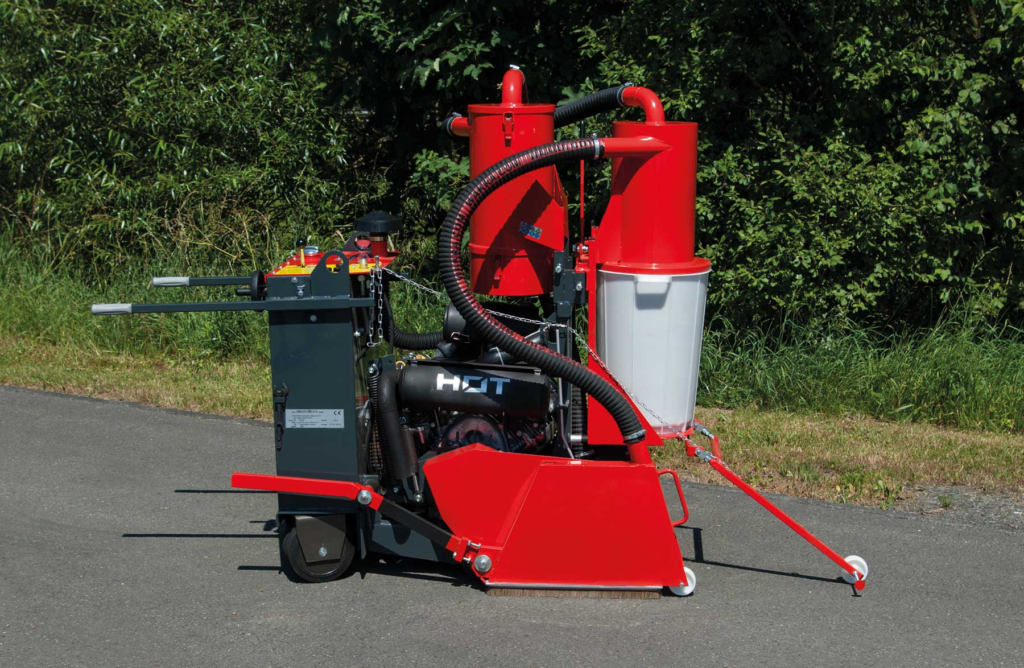

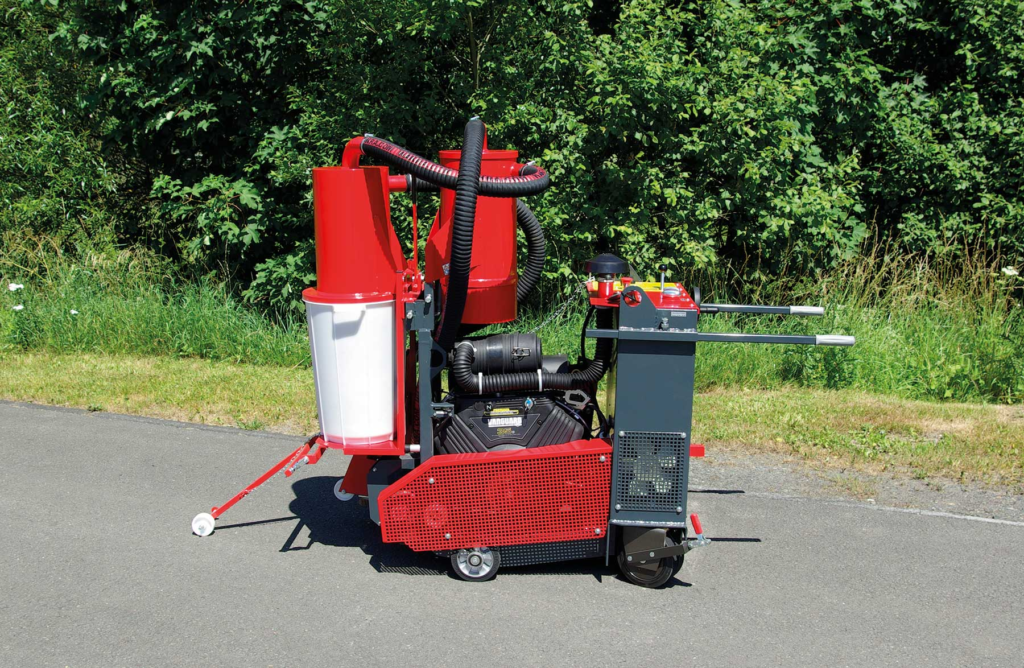

Dry joint cutter Dicorona 514-S

Especially suitable for the wall- or curb flush cutting of construction joints.

Description

  • Manoeuvrable and easy-to-use machine
  • Consistently well-suited for dry cutting
  • Integrated dust extraction

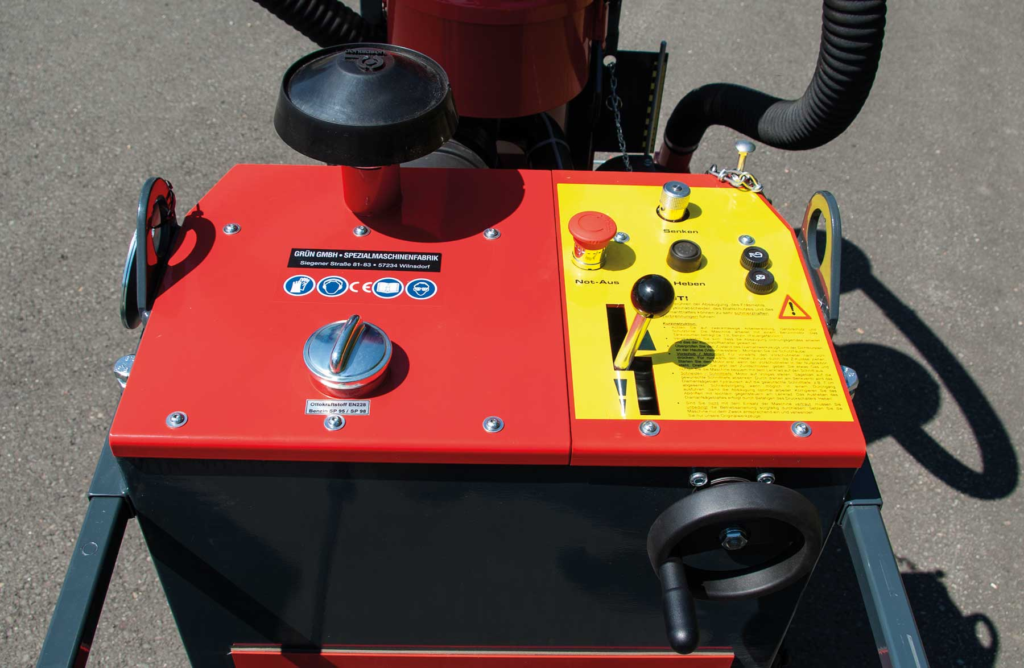

  • Hydraulic blade positioning by lowering valve and push-button switch
  • Reliable visual contact with the diamond saw blade when setting up the machine
  • Equipped with larger suction unit and double cyclone filter system to maximize dust extraction
  • The bevel cut equipment allows set the machine to a max. 5 degrees angel for cutting wall- or curb flush joints.



Delivery without cutting disc!

Technical data

Designation DICORONA 514 S
Part no. 5388 0100
Engine 2-Zyl. Benzinmotor mit Elektrostart 27,2 kW / 37 PS bei 3.600 Umdrehungen/min
Traction drive Hydraulisch regelbar bis ca. 30 m/min. mit voll lenkbarer Hinterachse
Blade diameter 350 mm / Bohrung 25,4 mm
Maximum cutting depth ca. 90 mm
Bevel cut adjustment Mechanisch über Spindeltrieb, max. 5 Grad
Blade rising and lowering Hydraulisch mit Senkventil
Weight ca. 363 kg
Length ca. 1.300 mm
Width ca. 630 mm
Height ca. 1.310 mm

Accessories

Diamond cutting disk 350 x 4.3 x 25.4 Art.-Nr. 5379 8100
Diamond cutting disk 350 x 6.0 x 25.4 Art.-Nr. 5379 8200
Diamond cutting disk 350 x 8.0 x 25.4 Art.-Nr. 5379 8500
