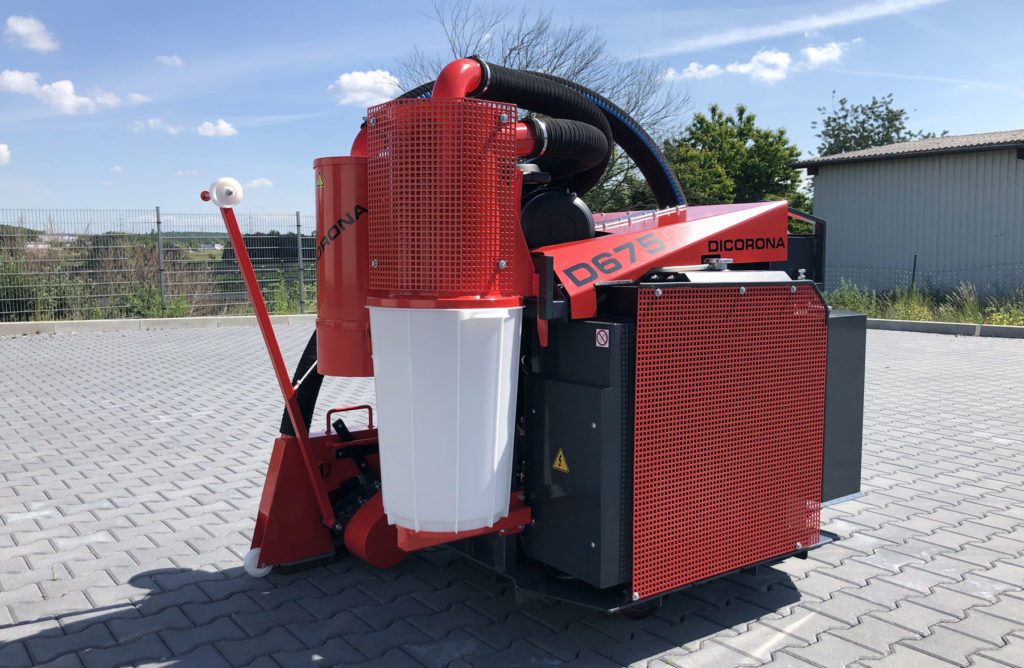

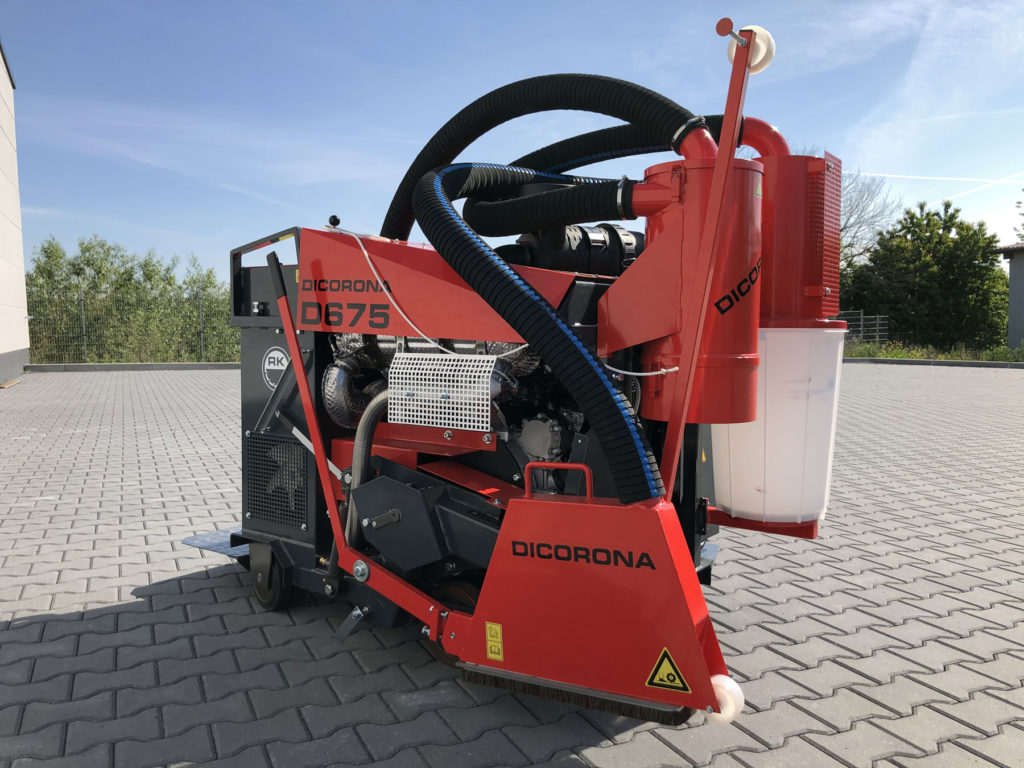

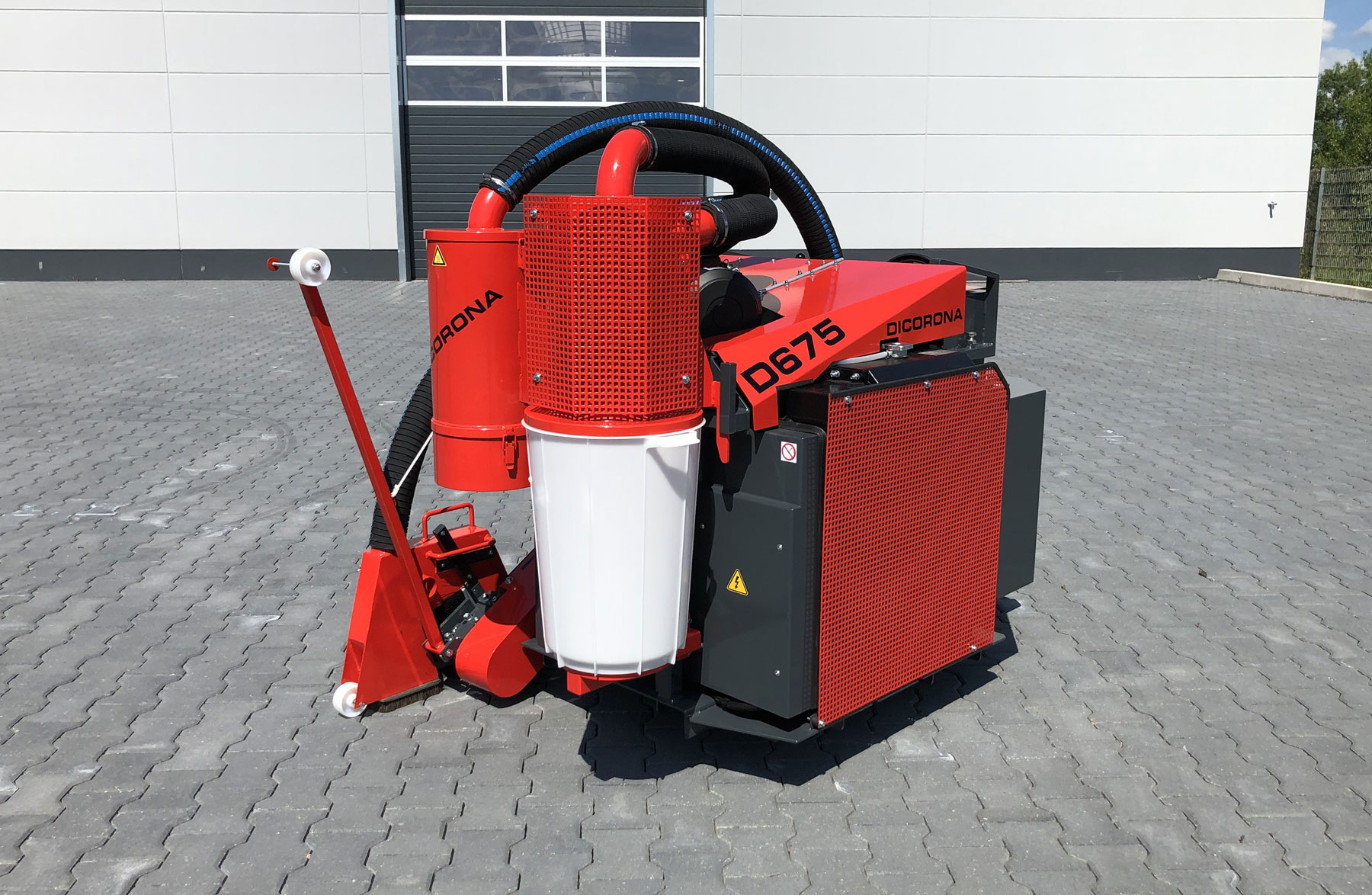

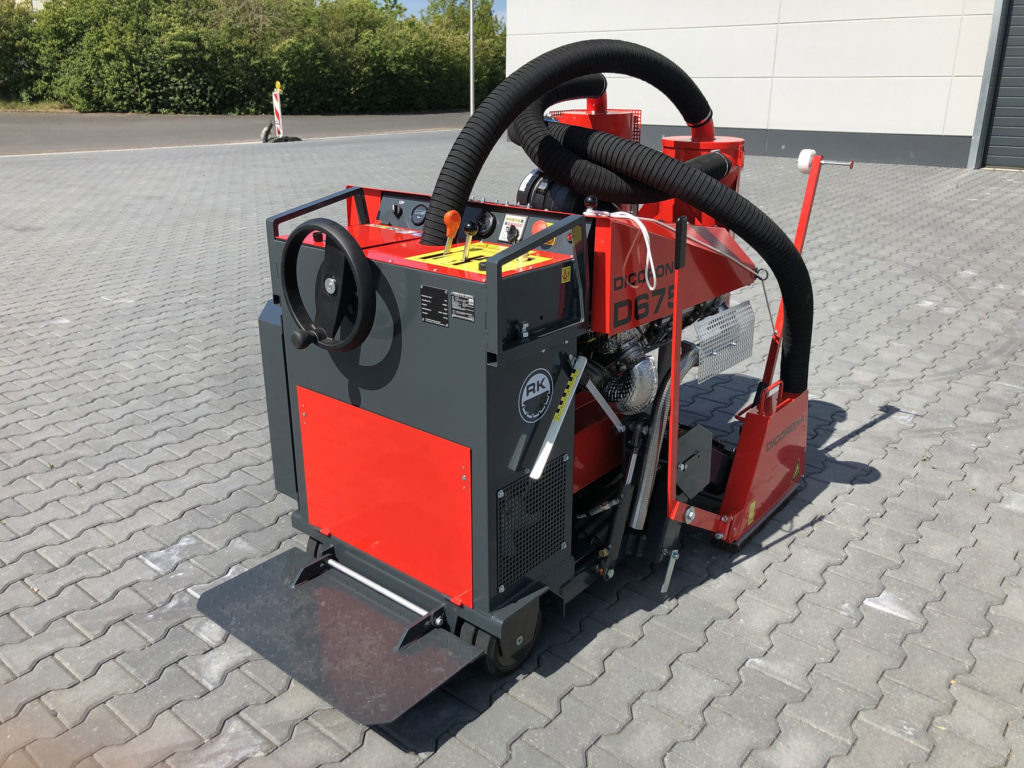

Trockenschnittfugenschneider Dicorona 675 Stage V

Description

Extremely manoeuvrable and easy-to-use machine
Consistently well-suited for dry cutting
Integrated dust extraction
hydraulic with lowering valve
Reliable visual contact with the diamond saw blade when setting up the machine
High performance machine with 58,4 HP and powerful dust extraction
3 cylinder turbo Hatz diesel engine EU Stage V, EPA Tier 4 final, with soot filter
Tread, steering wheel and traction drive

Delivery without cutting disc!

Designation	DICORONA 675 Stage V
Part no.	5390 0000
Engine	2 cylinder petrol engine with electric start 27,2 kW at 3600 rpm
Traction drive	Adjustable up to approx. 30m/min. with rear axle steering
Blade diameter	350 mm
Maximum cutting depth	approx. 90 mm
Blade rising and lowering	hydraulic with lowering valve
Weight	approx. 363 kg
Length	approx. 1.300 mm
Width	approx. 630 mm
Height	approx. 1.310 mm
