SYS SAFEX TR Z

Kategorien Fall protection systems, Horizontal cable system, Metal, System supports

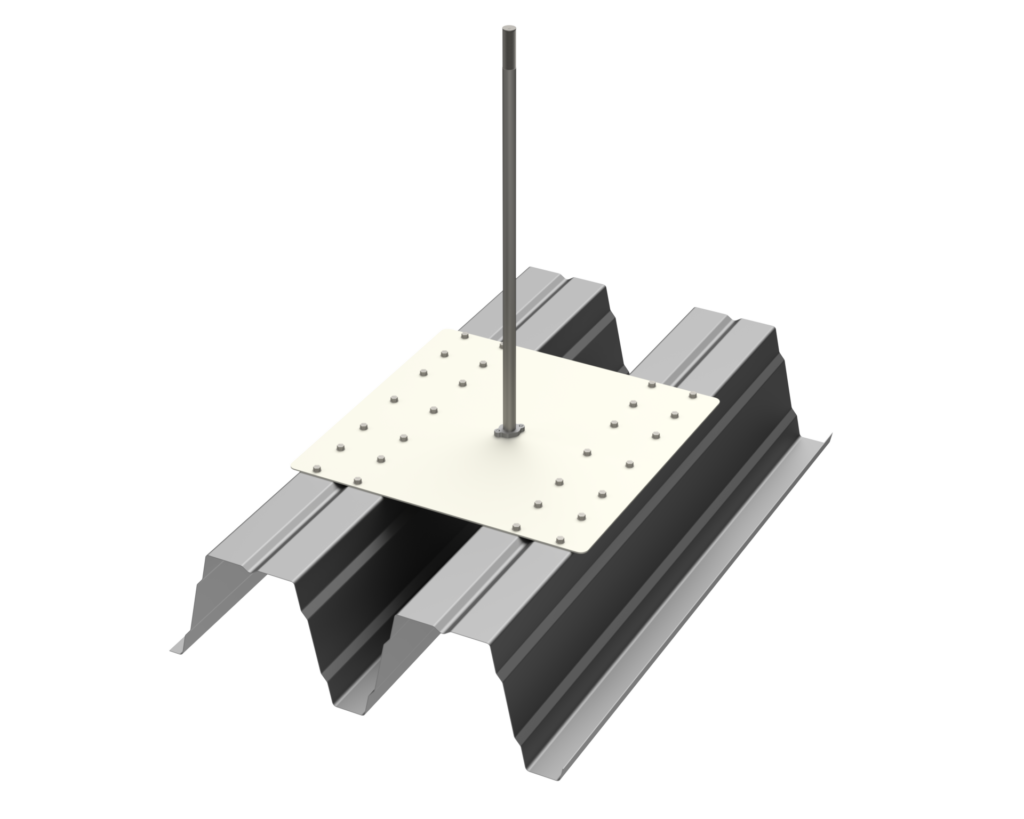

System support for intermediate holder in the GREENLINE lifeline system.

SYS SAFEX TR Z

Description

Mounting substrate:

Stahltrapezprofil (mind. 85 mm hoch, mind. 0,75 mm stark)

Fixing:

28 pieces stainless steel drilling screws (included in delivery)

Dimension:

Ø 16 mm x height, max. overhang roof structure: 300 mm

Approval:

general building authority approval according to DIBt

Certificate:

according to EN 795:2012 Type A, CEN/TS 16415:2017

Installation:

according to enclosed installation instructions

Variants

Article number	Designation	Height
46162301	GRÜN SYS SAFEX TR Z 300	300 mm
46162401	GRÜN SYS SAFEX TR Z 400	400 mm
46162501	GRÜN SYS SAFEX TR Z 500	500 mm
46162601	GRÜN SYS SAFEX TR Z 600	600 mm

Customised support heights up to max. 1000 mm available.
