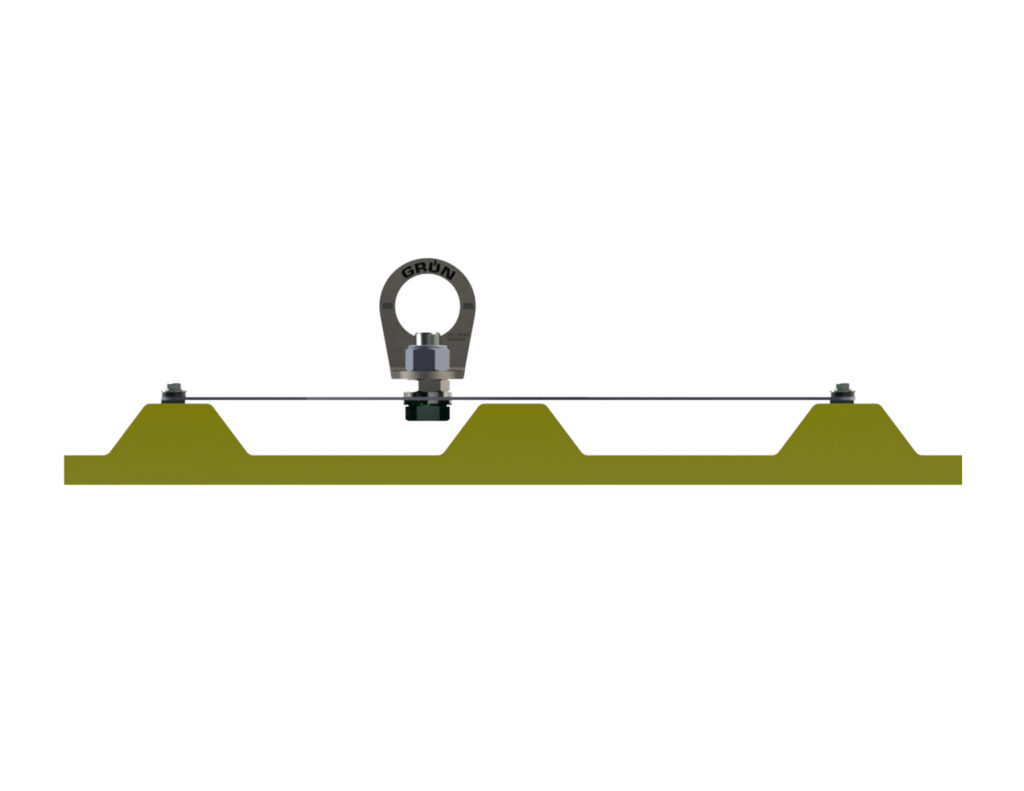

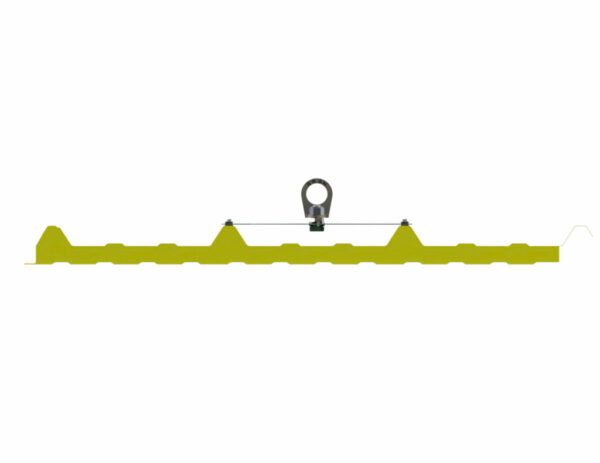

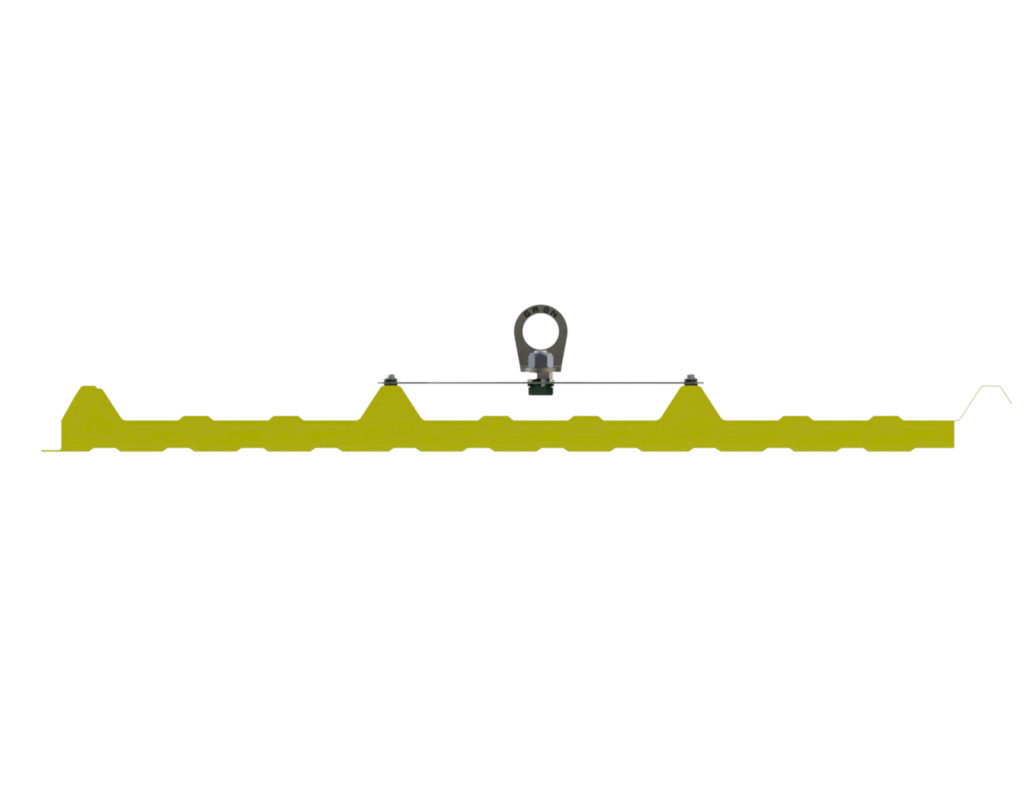

Single stainless steel anchor device for PPE with rotating swivel eye.

EAE SDW 1 und 2
EAE SDW 1 und 2 - Image 2
EAE SDW 1 und 2 - Image 3
EAE SDW 1 und 2 - Image 4
EAE SDW 1 und 2 - Image 5
EAE SDW 1 und 2 - Image 6
  1. EAE SDW 1 und 2
  2. EAE SDW 1 und 2 - Image 2
  3. EAE SDW 1 und 2 - Image 3
  4. EAE SDW 1 und 2 - Image 4
  5. EAE SDW 1 und 2 - Image 5
  6. EAE SDW 1 und 2 - Image 6

Description

Mounting substrate:

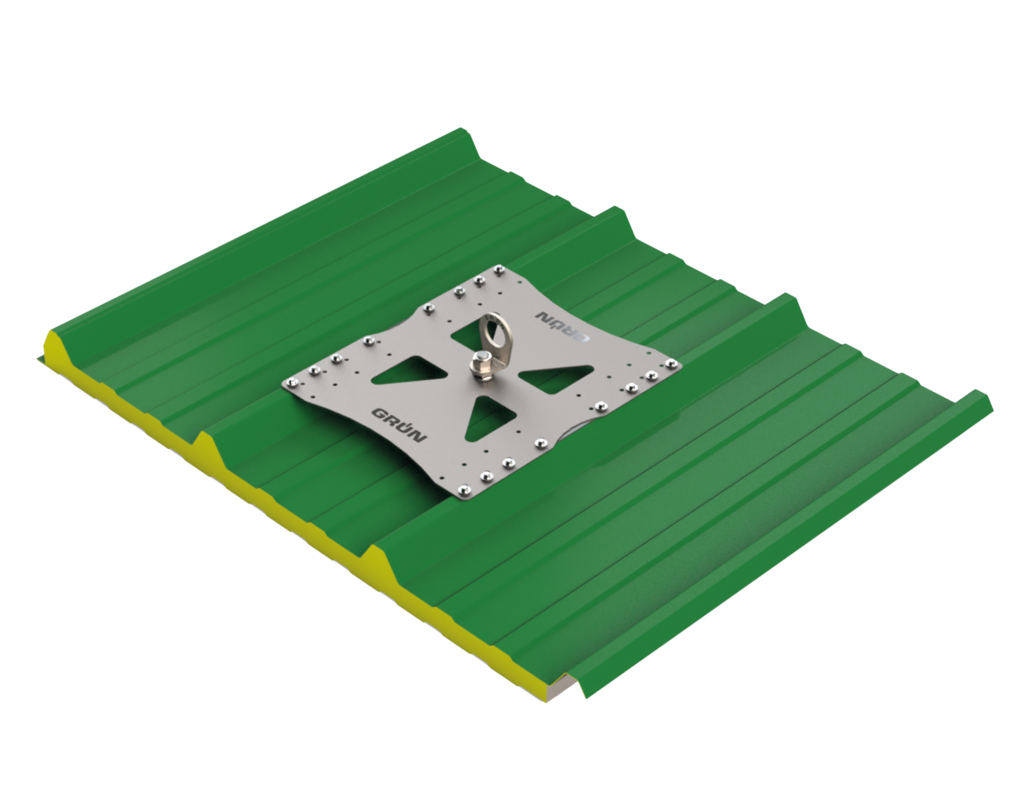

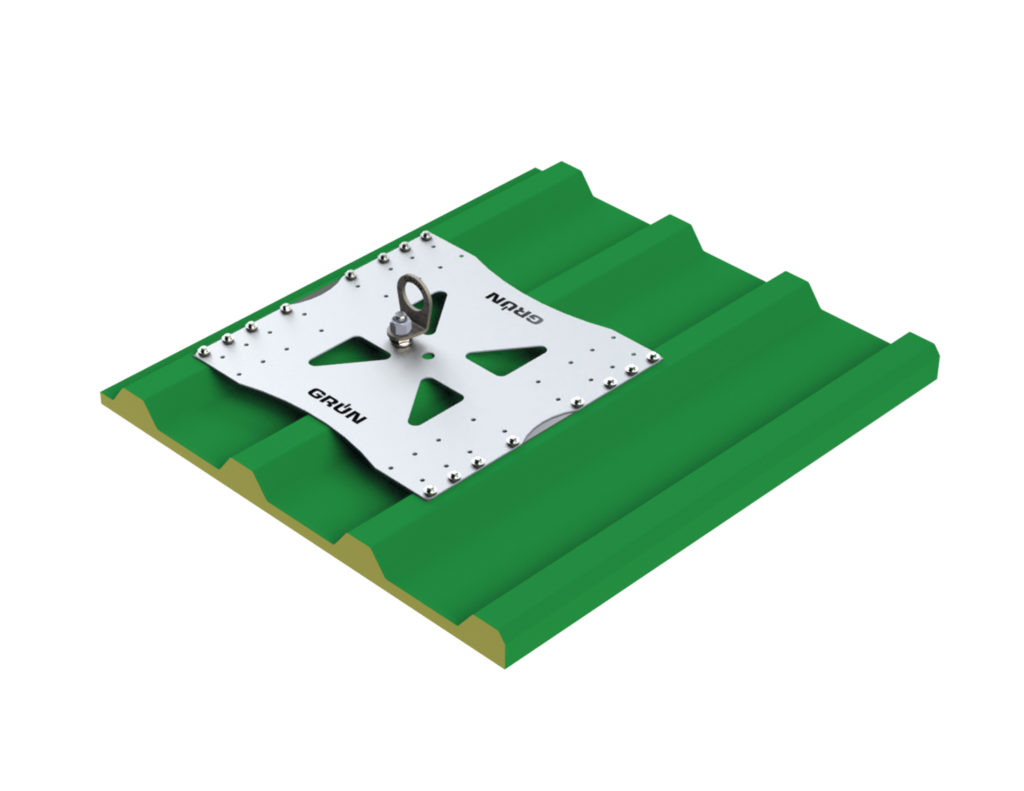

  • sandwich elements (outer skin at least 0,55mm thick)

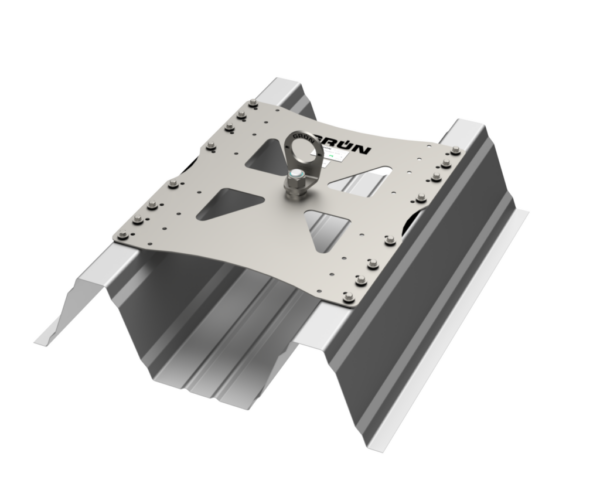

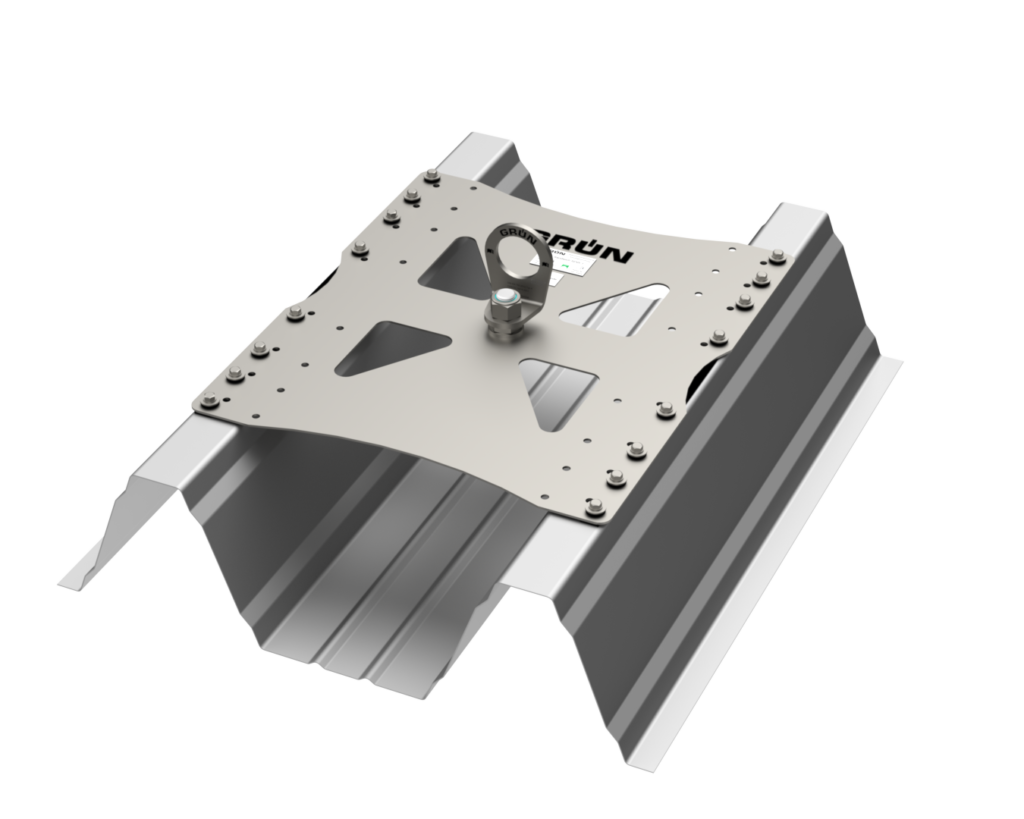

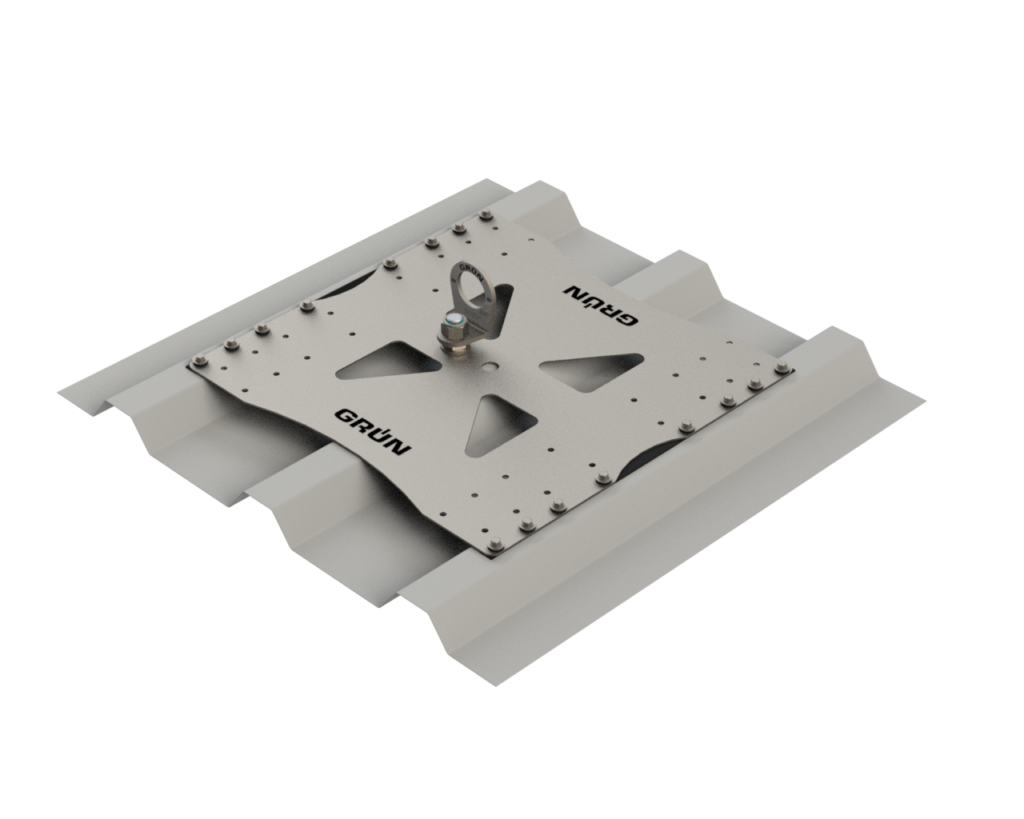

  • steel trapezoidal profile (at least 0,75mm thick)

Fixing:

  • 16 pieces special stainless steel screws (included in delivery)

Sheet metal bead:

  • SDW 1: 243/250/310/333 mm
  • SDW 2: 183/207/275/280 mm

Certificate:

  • according to EN 795:2012 Type A, CEN/TS 16415:2017

Installation:

  • according to enclosed installation instructions
